The KickAss 500A Battery Monitoring Shunt with Remote Display measures what is actually going in and out of your battery rather than guessing from voltage. On a lithium bank this is the only way to know your real state of charge, LiFePO4 holds an almost flat voltage curve until it is nearly empty, so a voltmeter tells you very little.

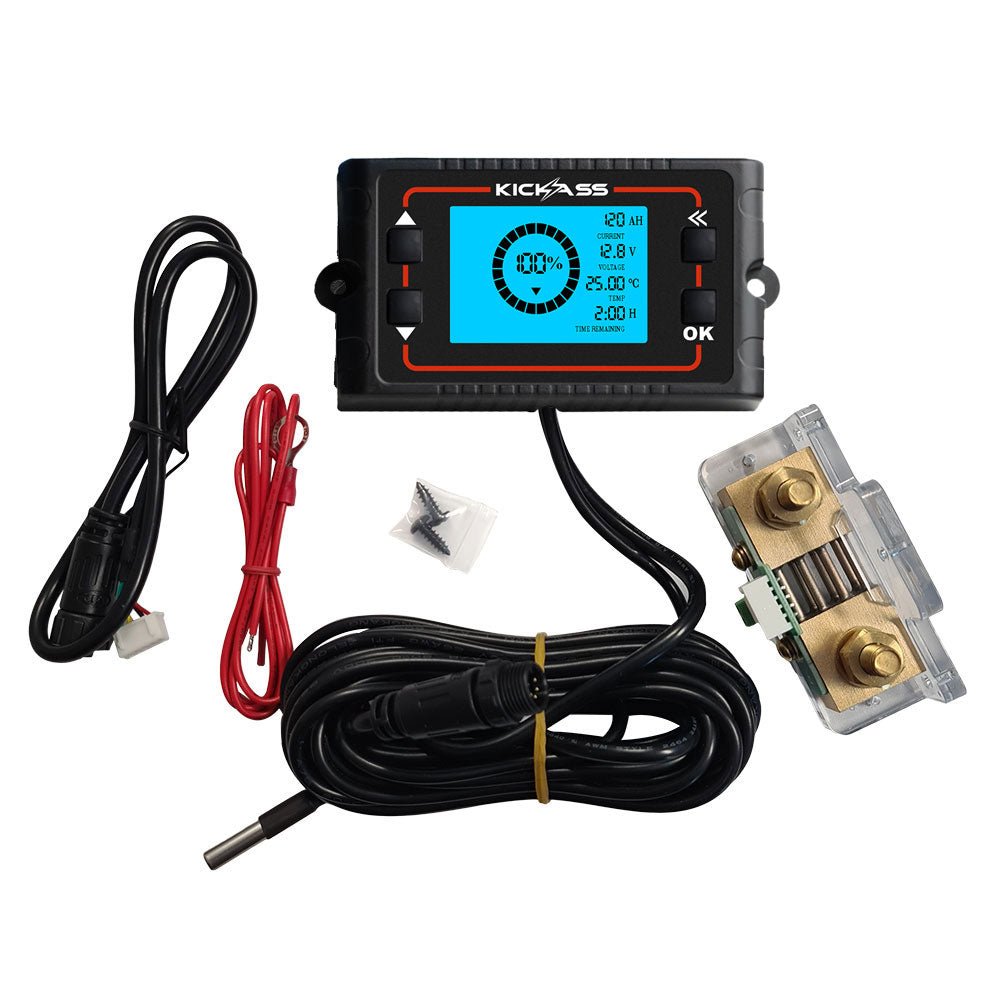

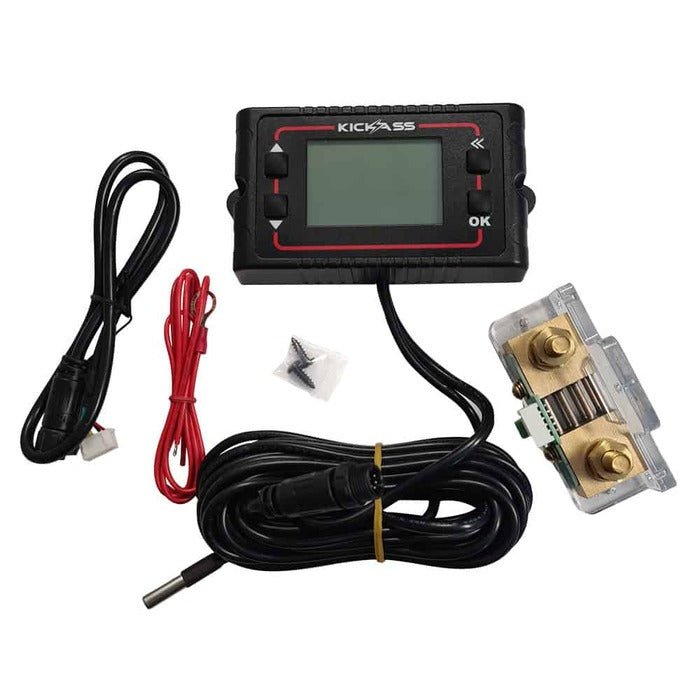

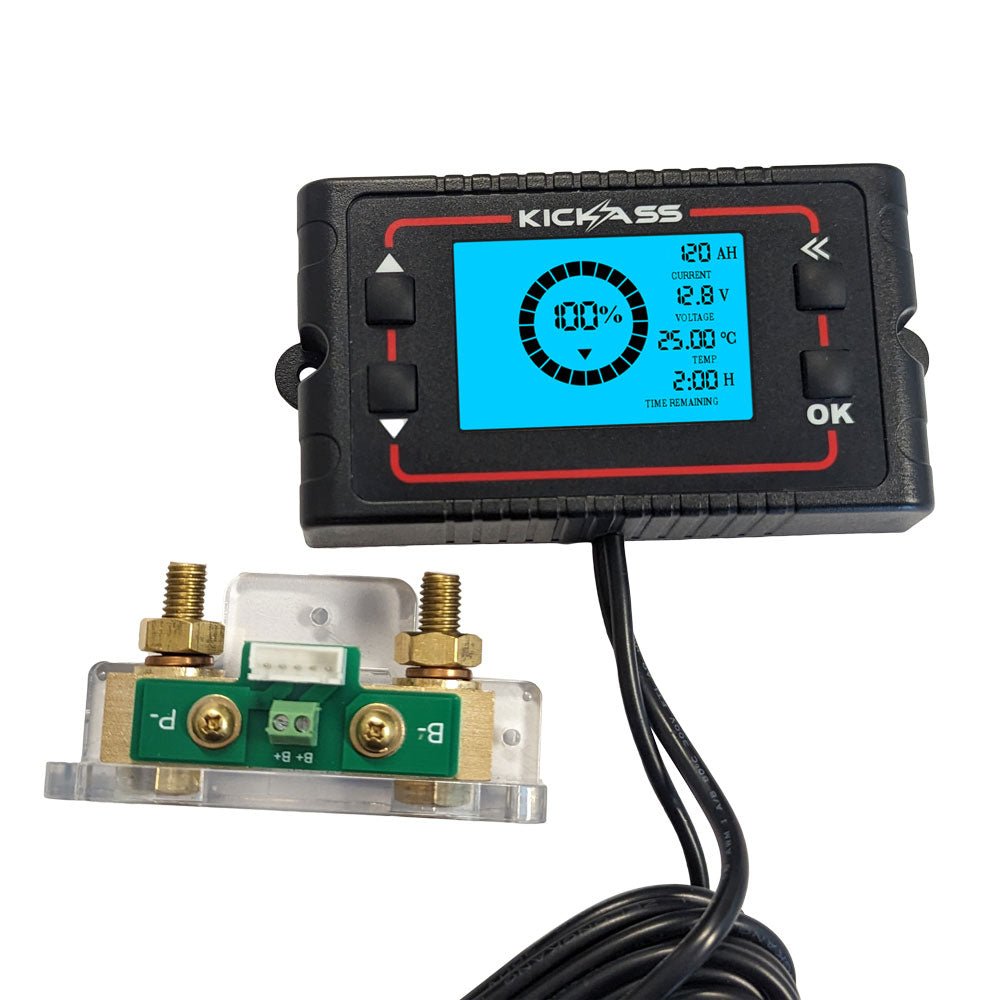

500A Shunt with Remote Display

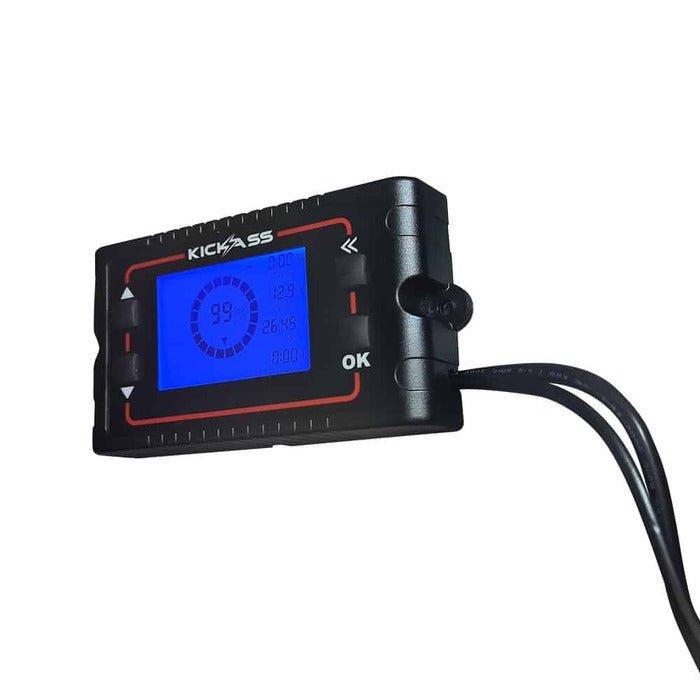

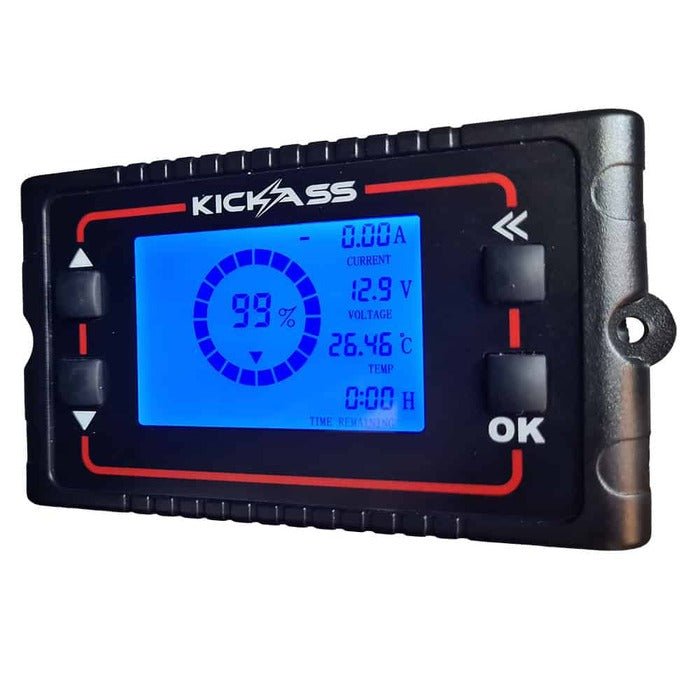

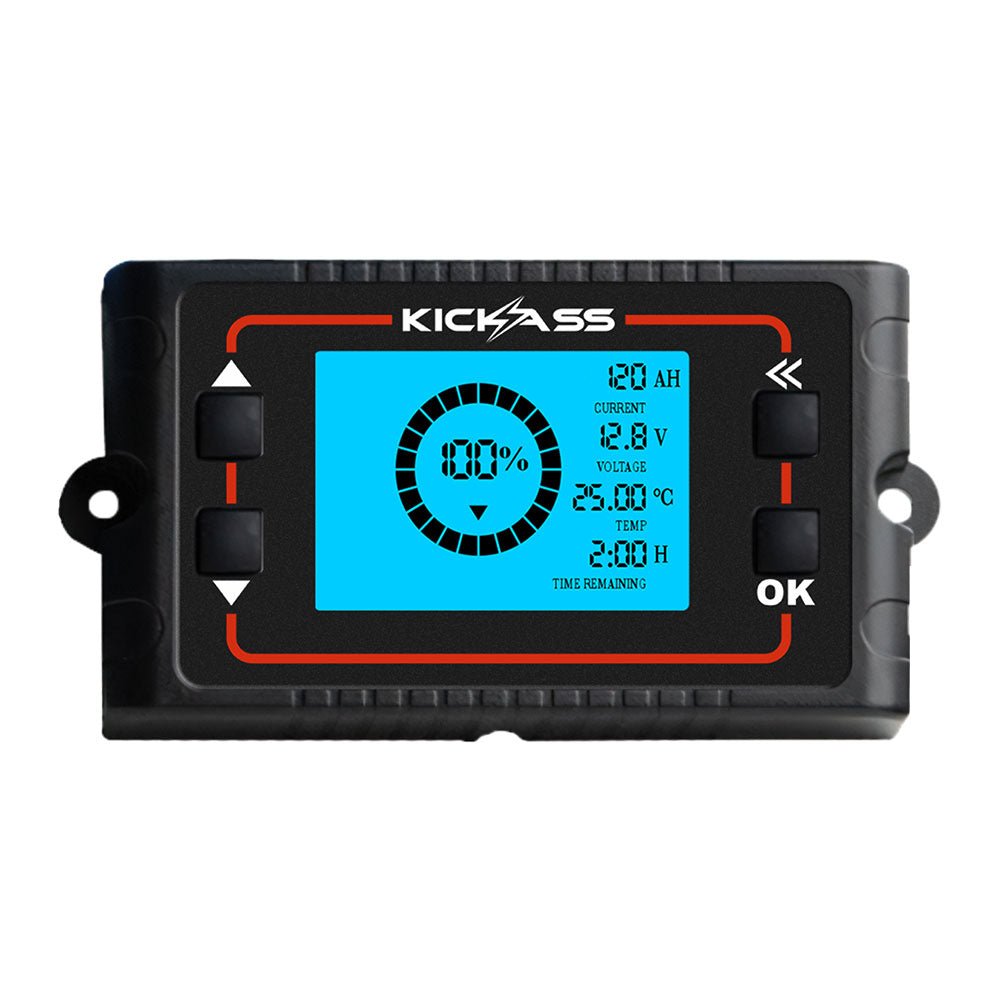

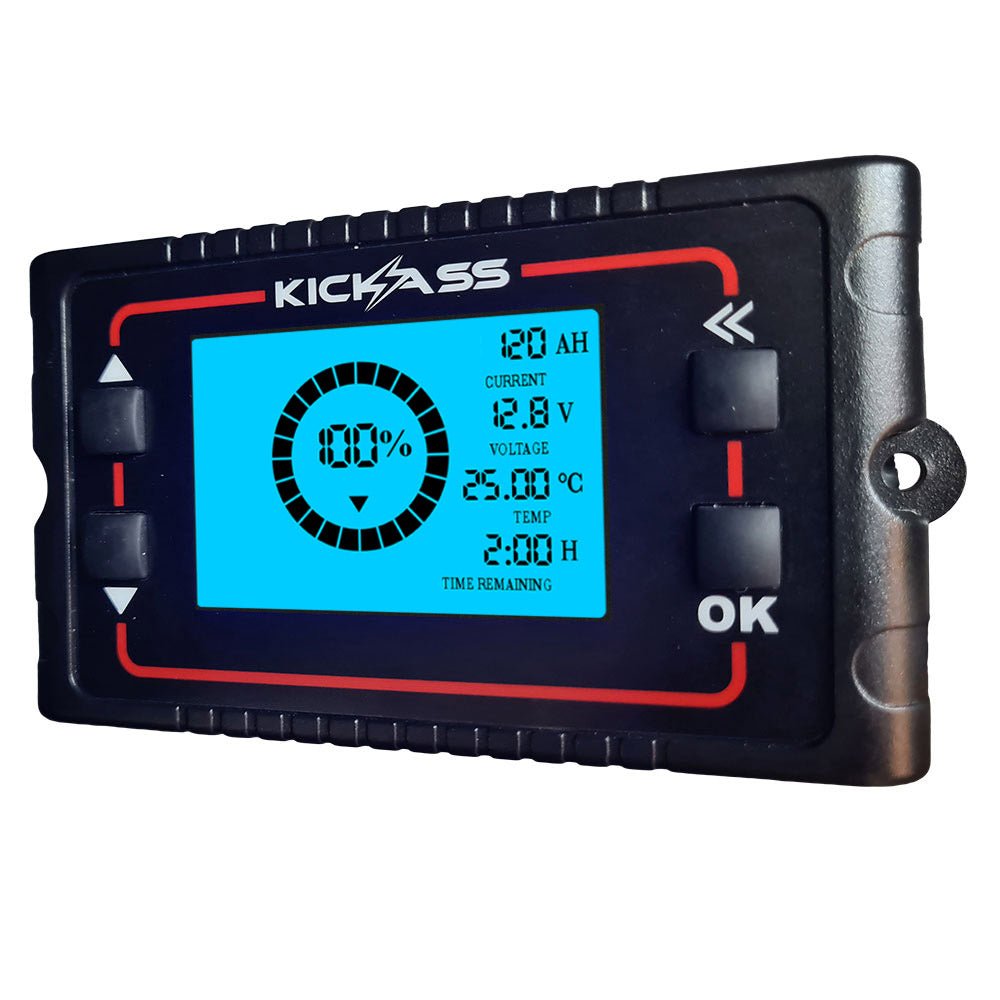

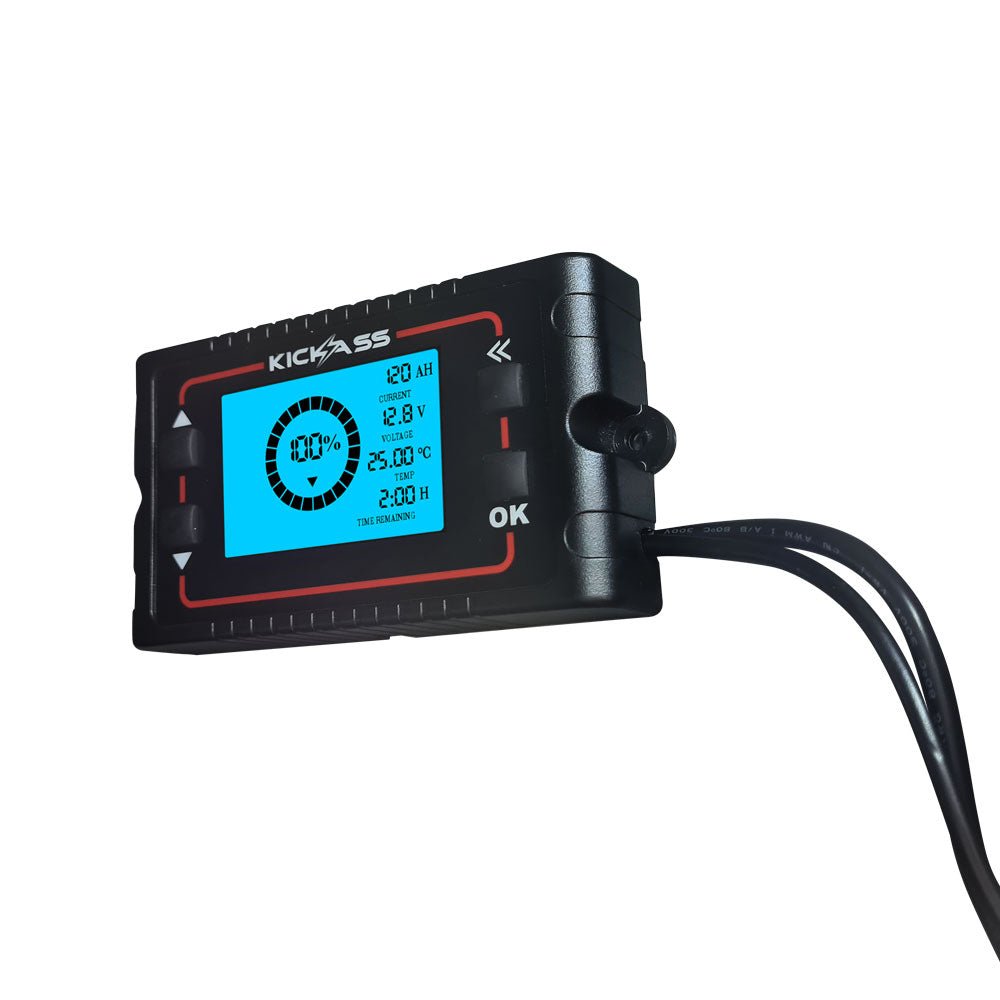

Wired into the negative side of the battery, it reads current in both directions, so the remote display shows draw, charge and remaining capacity in real time. Mount the display where you will see it, inside the canopy door, on a drawer face, or in the caravan.
KickAss 500A Battery Monitoring Shunt Specifications
- 500A shunt rating
- Remote display included
- Monitors voltage, current and state of charge
- Suits AGM and lithium banks
- Weight: 560g
- SKU: KABTRYSHUNT

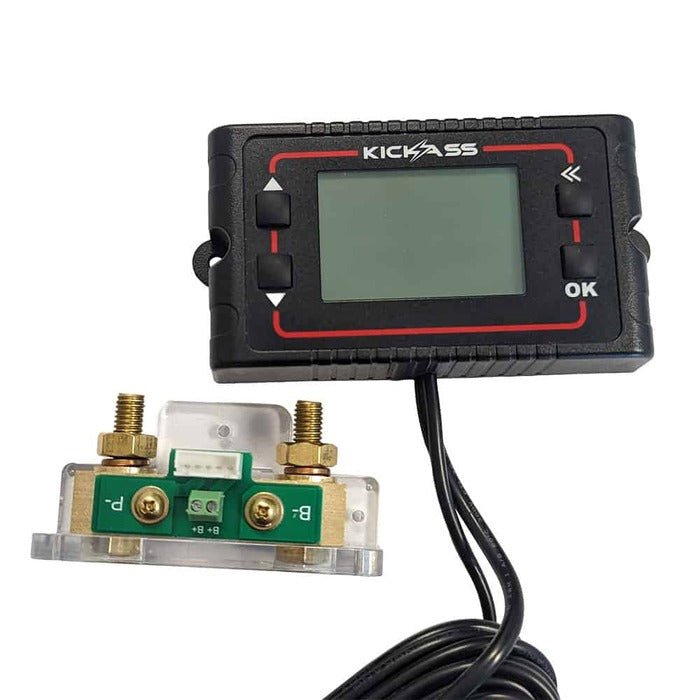

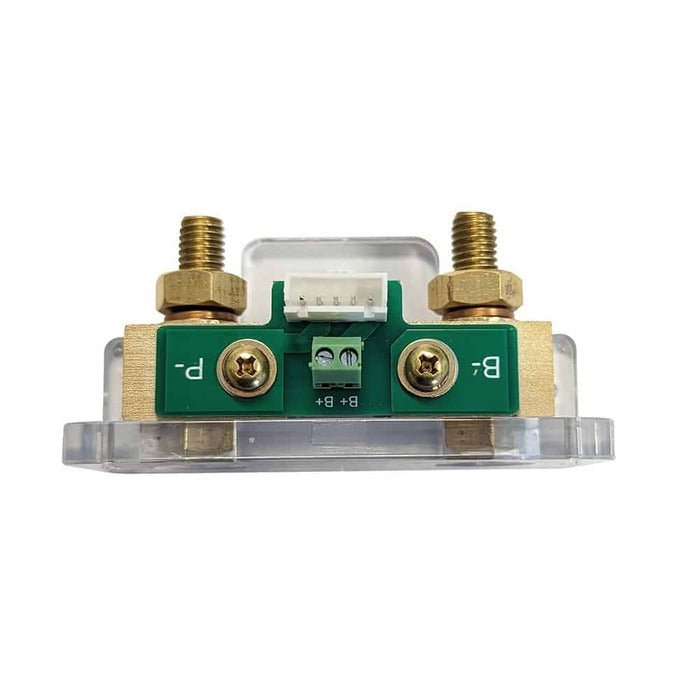

The shunt installs on the negative side of the battery and every negative load must run through it. Anything wired directly to the battery negative is invisible to the shunt, and your state of charge reading will drift wrong.
