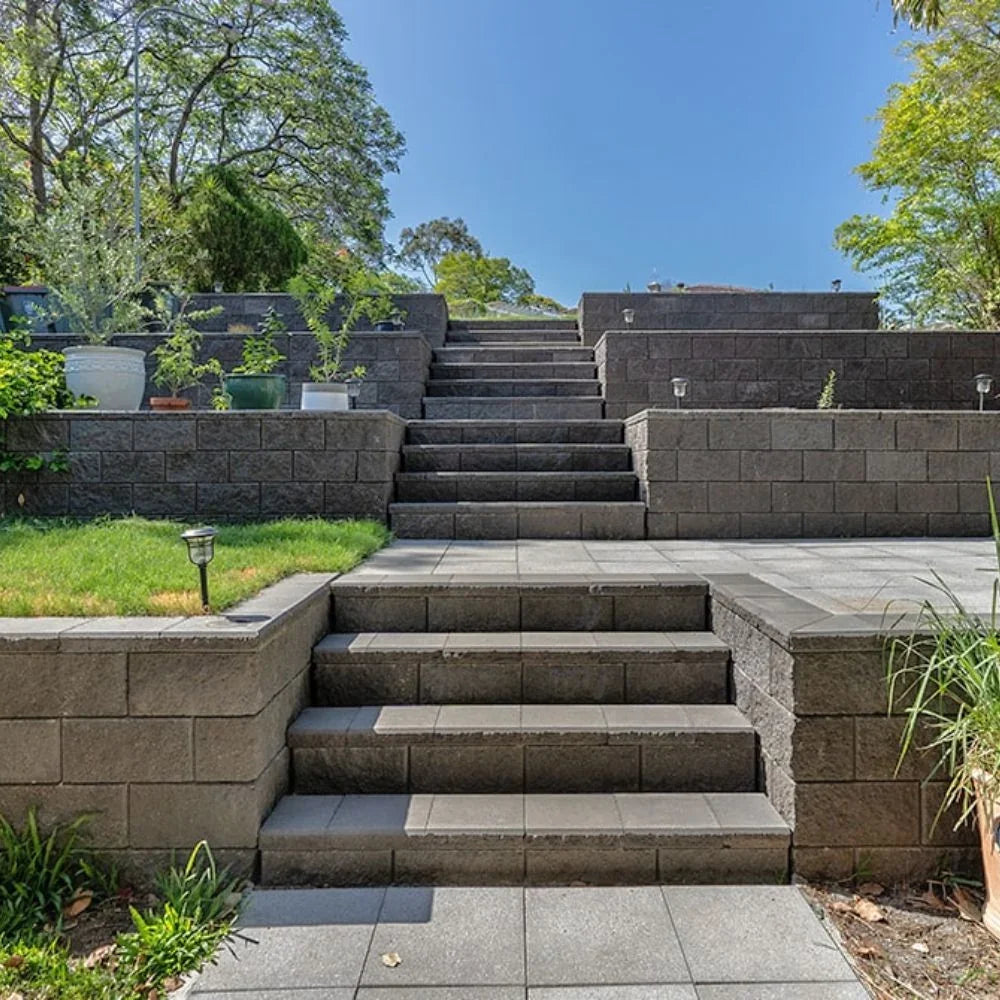

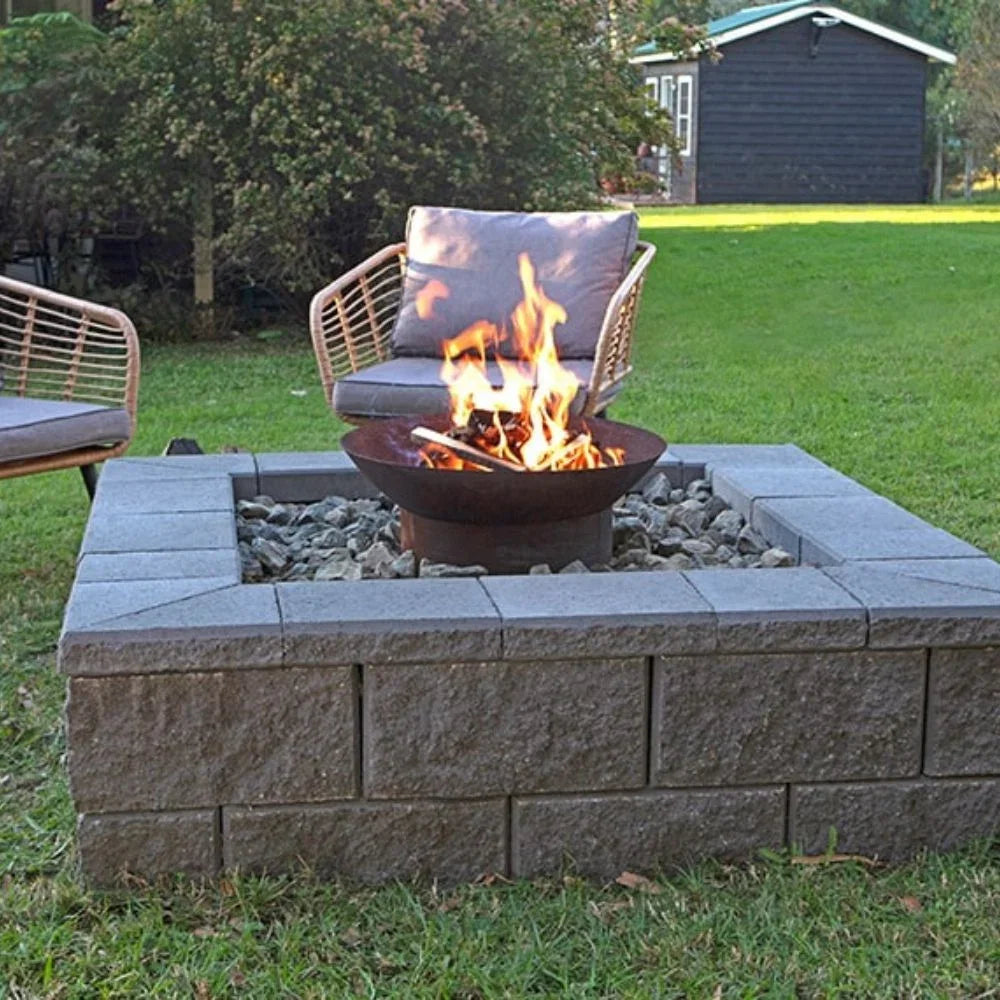

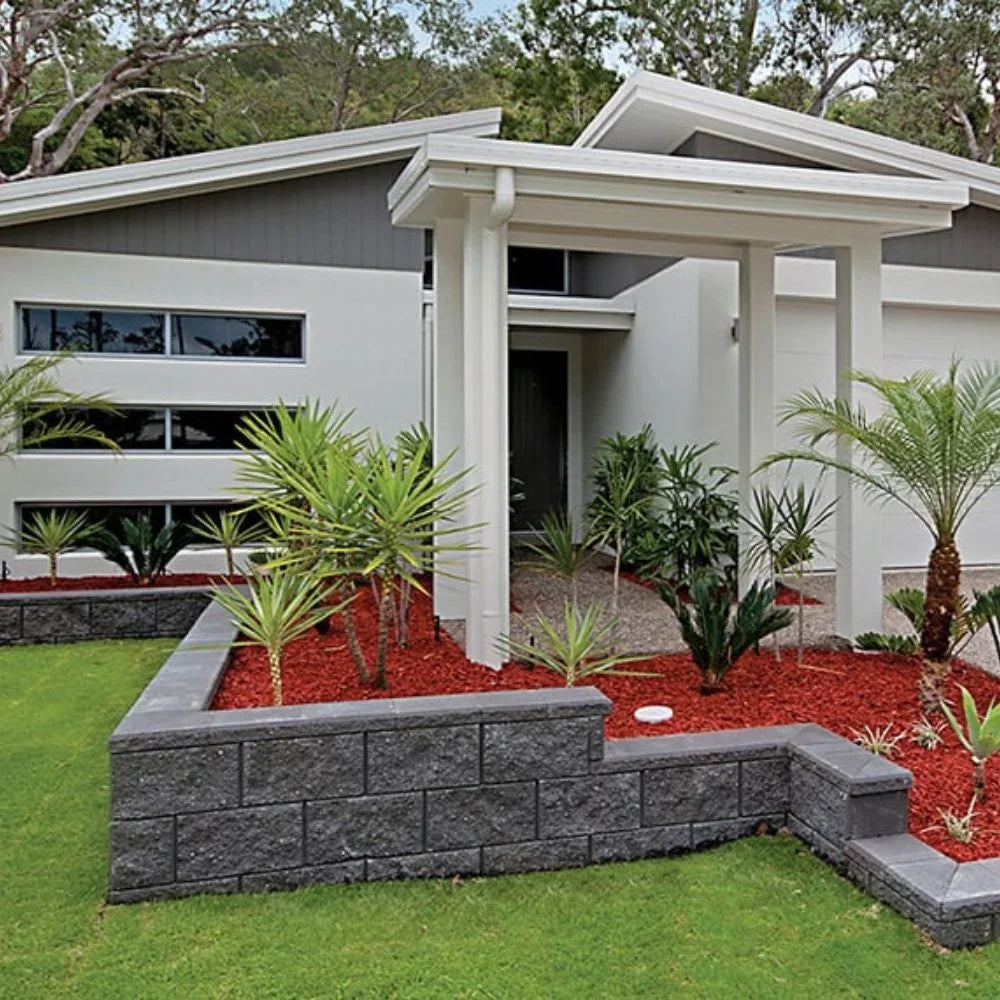

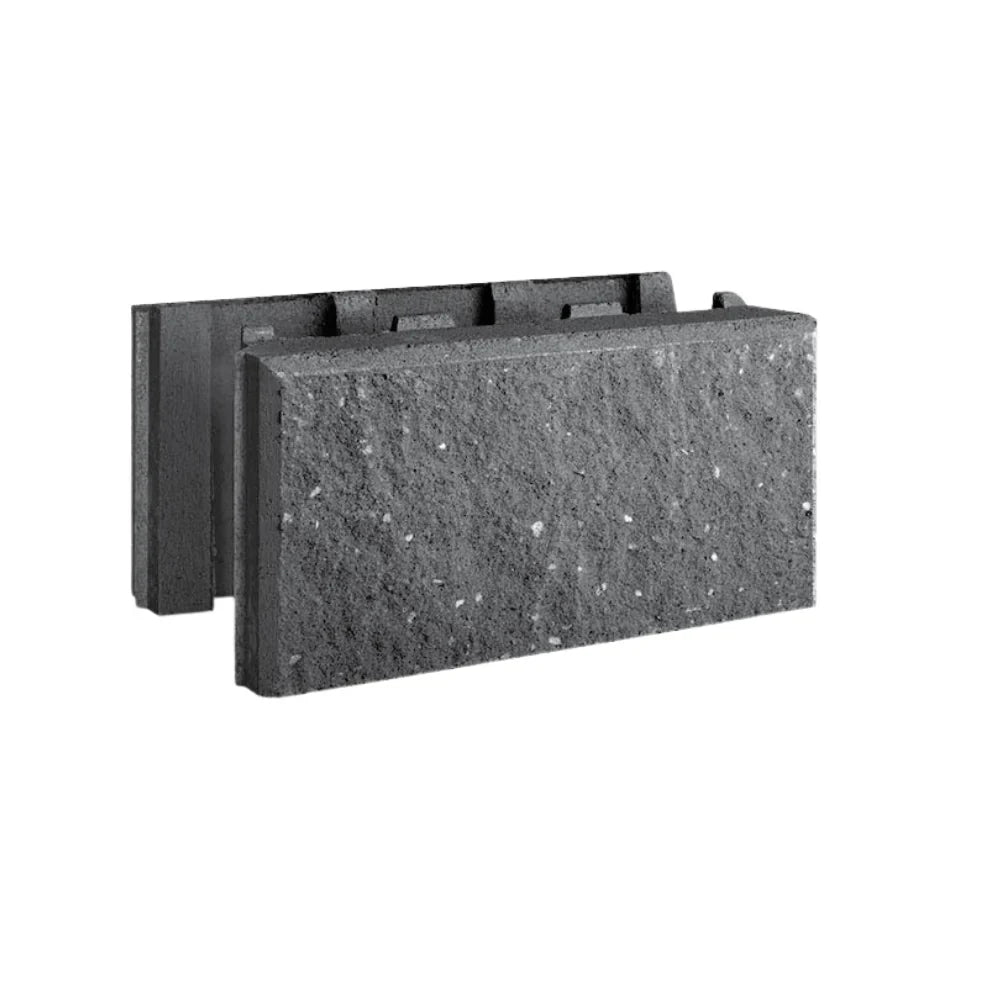

Versawall is Adbri's workhorse DIY retaining block for garden terraces, raised beds, planter boxes, fire pits and boundary retaining up to 800mm. Because it stacks dead vertical rather than stepping back, it suits tight courtyards and side setbacks where a battered wall would eat into the garden. The split face gives a heavy, natural rock appearance at a fraction of the cost of stonework. Above 800mm it becomes an engineered wall - core filled with no-fines concrete to a maximum of 1400mm.

Key Features

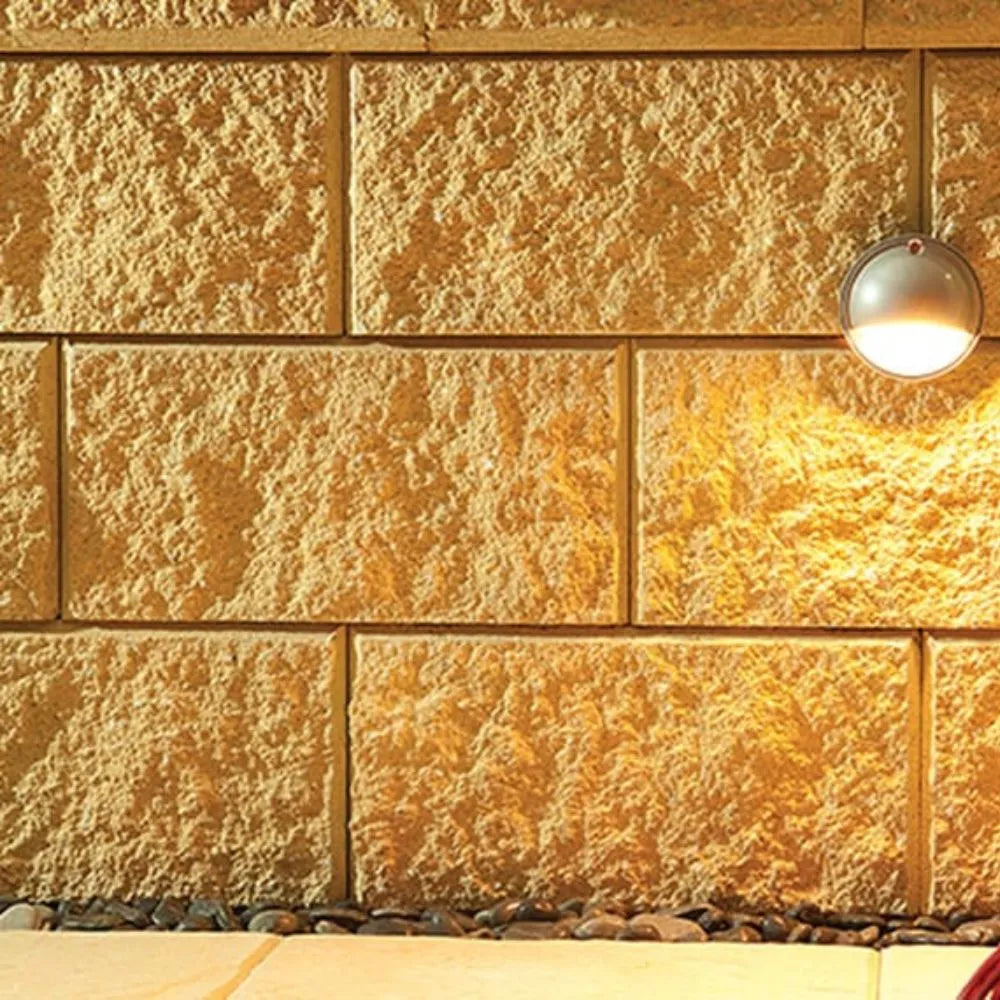

• Large split-face texture - a real quarried-rock look, not a smooth block
• Builds truly vertical walls with no setback, so you keep every millimetre of usable ground
• 800mm + cap DIY unreinforced, 1400mm + cap engineered with no-fines concrete core fill
• Interlocking lugs and tongue-and-groove ends self-align the course - no mortar, no string-line fiddling
• Only 12.5 blocks per square metre - fast coverage, fewer lifts than small-format walling
• Matching left and right split-face corner units for clean 90 degree returns
• Cored block - the core fill doubles as the drainage path
• Manufactured to the AS 4455 suite, +/-2mm tolerance

Wall height and approvals

Adbri publishes a maximum unreinforced height of 800mm plus cap (4 courses), or 1400mm plus cap when engineered and core filled with no-fines concrete. Adbri advises checking your local council's requirements for any retaining wall over 800mm. Any surcharge above the wall - a driveway, vehicle, structure or pool - or sloping ground behind it, needs an engineer.

Specifications

• Material: Concrete

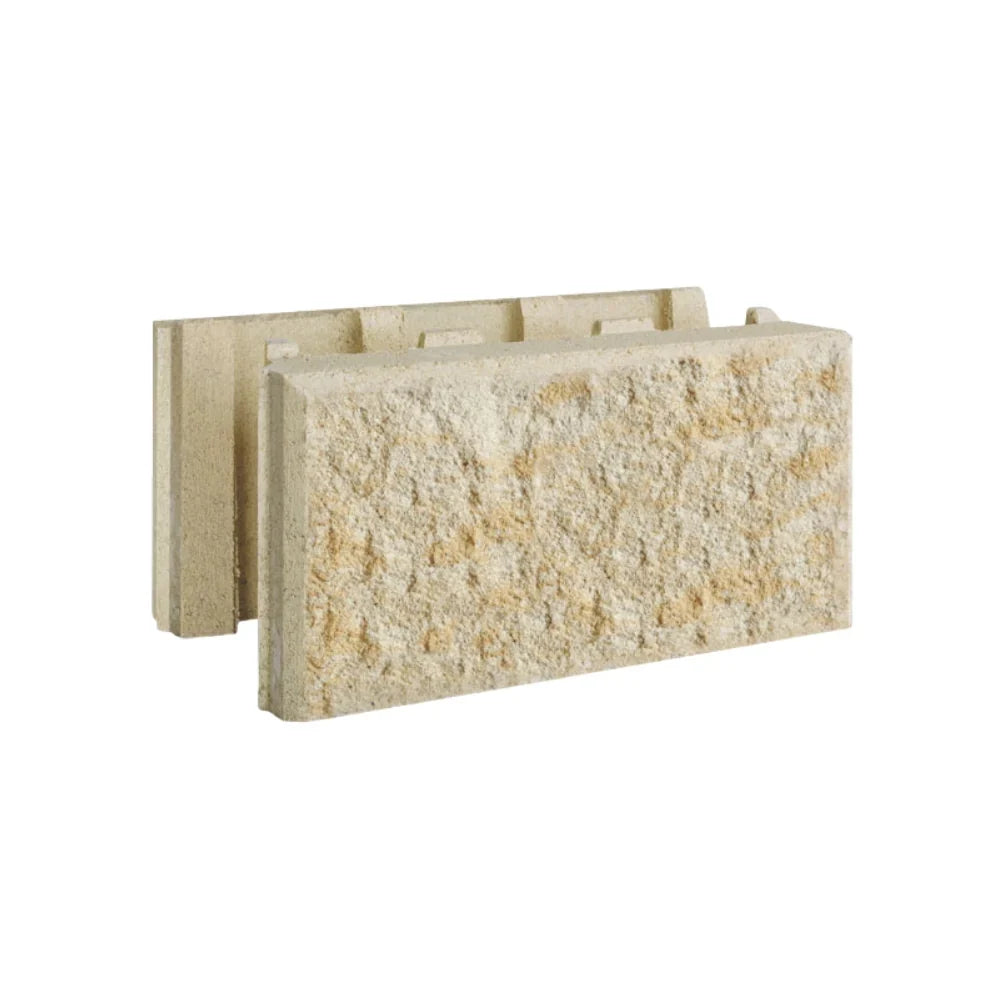

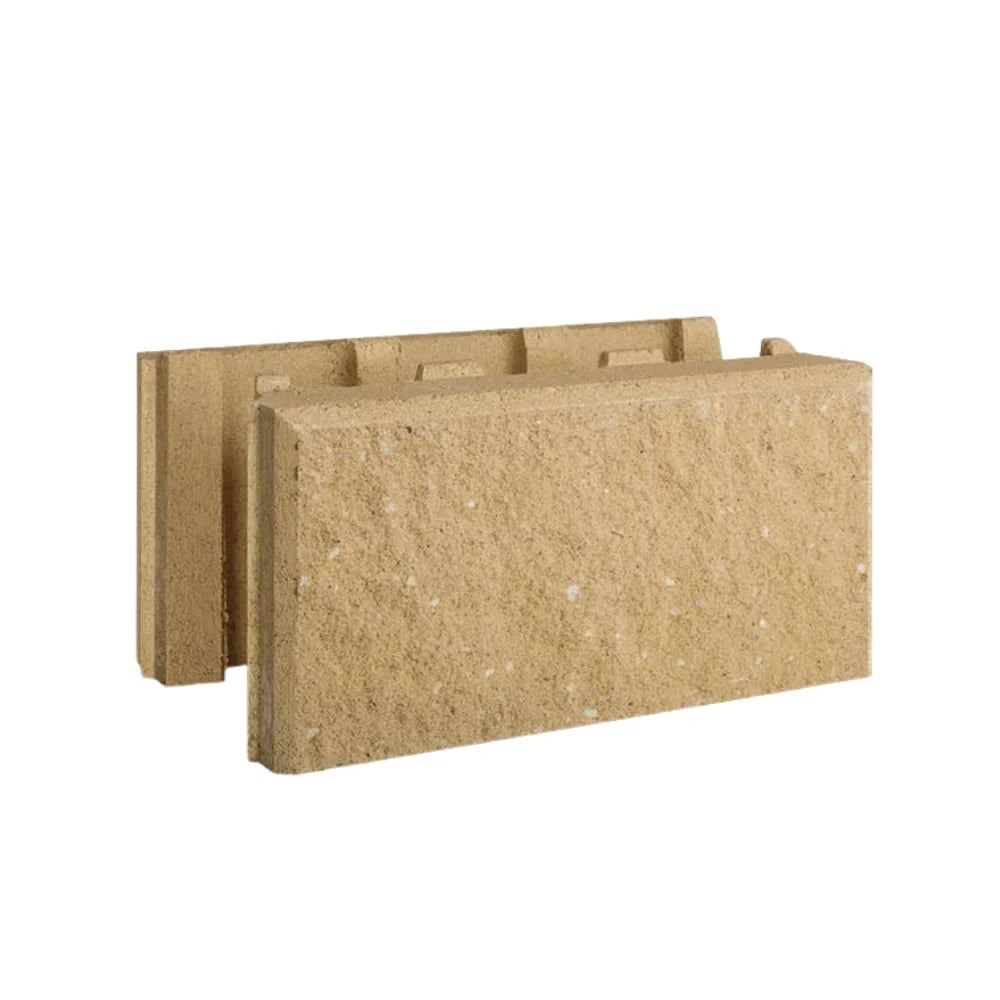

• Dimensions: 400 x 200 x 215mm
• Weight: 21kg each
• Coverage: 12.5 blocks per m2, 2.5 per lineal metre per course
• Pallet quantity: 60 units
