The 300 Series H Block is the workhorse for the bottom of a tall, core-filled retaining wall. Because both ends are open, the bricklayer lowers it sideways over the starter bars projecting from the footing rather than lifting each block over the top of the steel - much faster and far safer. The open ends also leave a clear channel for concrete to flow the length of the wall, so the grout fills properly instead of bridging. Most engineered walls run 300 series H blocks for the first few courses, then step down to 200 series higher up where the loads ease.

Key Features

  • Open both ends - laid around vertical starter bars, not threaded over them
  • Continuous unobstructed grout channel: better concrete flow, fewer voids
  • Superior to closed-end blocks wherever there's vertical reinforcement
  • Standard for the lower courses of high retaining walls before switching to 200 series above
  • Litec lightweight - 15.80kg vs a dense 300 series unit
  • Adbri quotes f'uc of 15 MPa or greater for this shape
  • 72 per pallet, 63 per tonne

Specifications

  • Material: Concrete

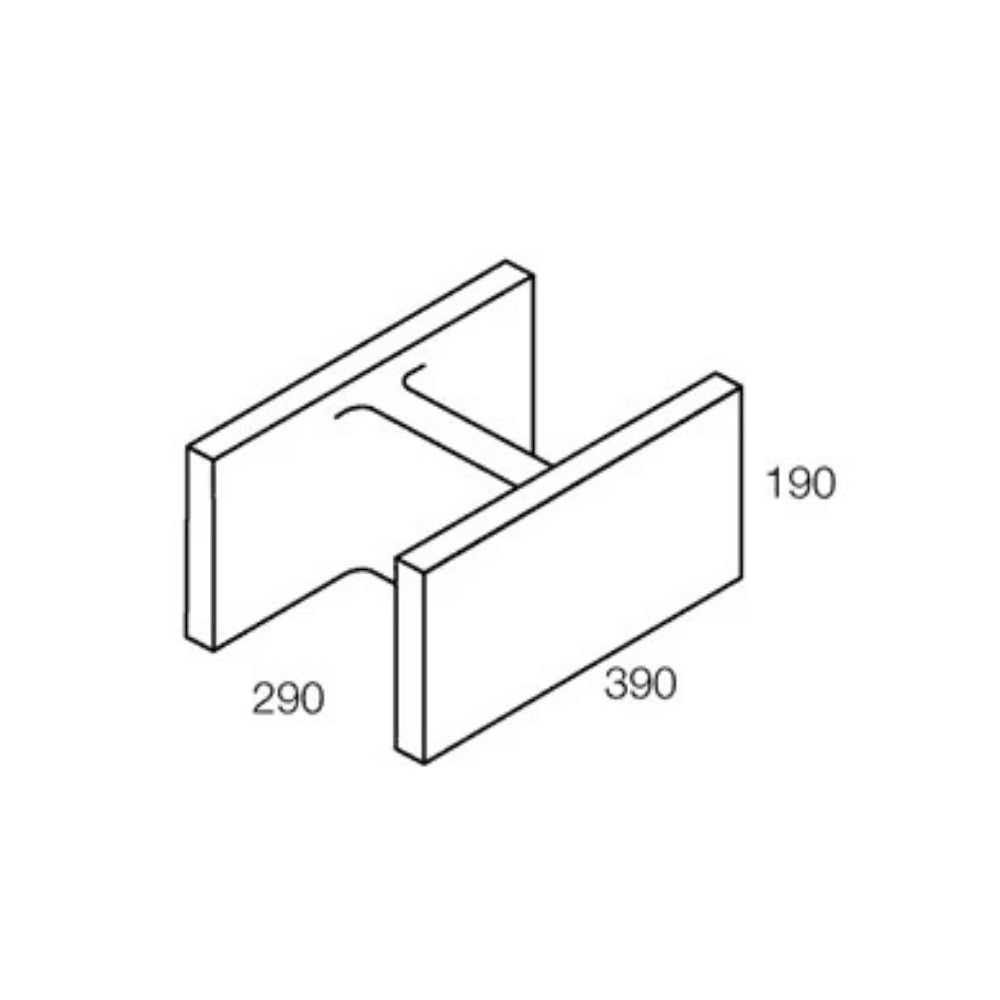

  • Dimensions: 390 x 290 x 190mm
  • Weight: 15.8kg each
  • Coverage: 12.5 blocks per m2
  • Pallet quantity: 72 units
  • Manufactured to AS/NZS 4455.1

Litec 300 Series H Block

$8.20
GST included
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can be bought in quantity increments of .

Your Landscape Calculations

  1. Example Area 1 - 116 m²
  2. Example Area 2 - 80 m²
Remaining Turf Area: 0 m²
Tip: Add up to 10% extra to allow for cuts and waste.

The 300 Series H Block is the workhorse for the bottom of a tall, core-filled retaining wall. Because both ends are open, the bricklayer lowers it sideways over the starter bars projecting from the footing rather than lifting each block over the top of the steel - much faster and far safer. The open ends also leave a clear channel for concrete to flow the length of the wall, so the grout fills properly instead of bridging. Most engineered walls run 300 series H blocks for the first few courses, then step down to 200 series higher up where the loads ease.

Key Features

  • Open both ends - laid around vertical starter bars, not threaded over them
  • Continuous unobstructed grout channel: better concrete flow, fewer voids
  • Superior to closed-end blocks wherever there's vertical reinforcement
  • Standard for the lower courses of high retaining walls before switching to 200 series above
  • Litec lightweight - 15.80kg vs a dense 300 series unit
  • Adbri quotes f'uc of 15 MPa or greater for this shape
  • 72 per pallet, 63 per tonne

Specifications

  • Material: Concrete
  • Dimensions: 390 x 290 x 190mm
  • Weight: 15.8kg each
  • Coverage: 12.5 blocks per m2
  • Pallet quantity: 72 units
  • Manufactured to AS/NZS 4455.1

Delivery Direct To Site

A delivery charge of $125 (incl. GST) applies to orders under 3 tonnes, with extra freight charged outside the local metro area depending on distance and load weight.

Pallets must be collected after delivery.
