This is the block that spans openings in a 300mm wall. It's a U-shaped trough: lay it across the opening, drop in your reinforcing bar, fill with concrete, and you've formed a structural lintel in the same coursing as the rest of the wall. The deeper channel gives you more room for steel than a standard lintel, so it handles wider openings and heavier loads above. It also doubles as a bond beam block for running a continuous reinforced ring through a wall.

Key Features

  • Deep channel takes more steel and grout than a standard lintel - longer spans, heavier loads
  • Forms lintels and continuous bond beams in one product
  • Litec lightweight - matters when you're lifting a 20kg unit onto a scaffold
  • 290mm wide - suits 300 series structural and retaining walls
  • Open-ended: reinforcement threads straight through, no obstruction to grout flow
  • Manufactured to AS 4455.1, tested to AS/NZS 4456
  • 2.5 blocks per lineal metre - easy quoting

Specifications

  • Material: Concrete

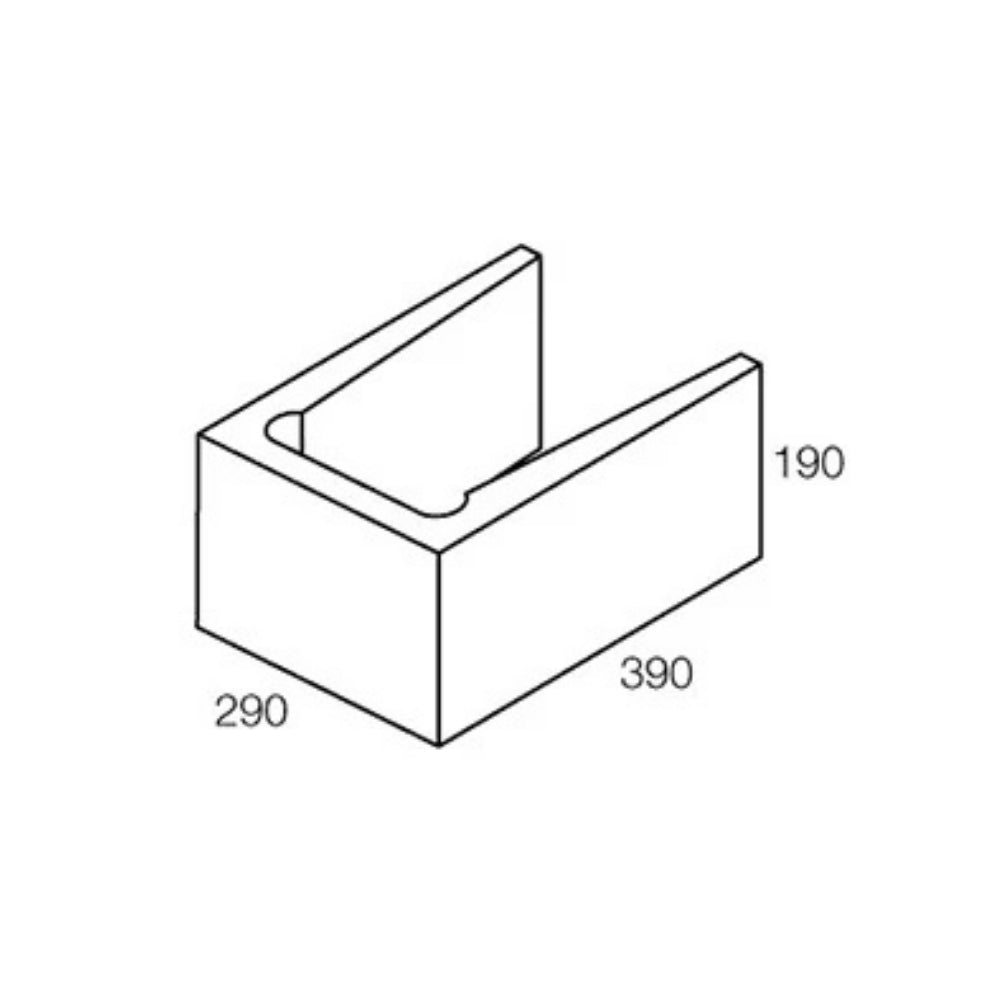

  • Dimensions: 390 x 290 x 190mm
  • Weight: 20kg each
  • Coverage: 12.5 blocks per m2
  • Pallet quantity: 72 units
  • Manufactured to AS/NZS 4455.1

Litec 300 Series Deep Lintel Concrete Block

$15.70
GST included
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can be bought in quantity increments of .

Your Landscape Calculations

  1. Example Area 1 - 116 m²
  2. Example Area 2 - 80 m²
Remaining Turf Area: 0 m²
Tip: Add up to 10% extra to allow for cuts and waste.

This is the block that spans openings in a 300mm wall. It's a U-shaped trough: lay it across the opening, drop in your reinforcing bar, fill with concrete, and you've formed a structural lintel in the same coursing as the rest of the wall. The deeper channel gives you more room for steel than a standard lintel, so it handles wider openings and heavier loads above. It also doubles as a bond beam block for running a continuous reinforced ring through a wall.

Key Features

  • Deep channel takes more steel and grout than a standard lintel - longer spans, heavier loads
  • Forms lintels and continuous bond beams in one product
  • Litec lightweight - matters when you're lifting a 20kg unit onto a scaffold
  • 290mm wide - suits 300 series structural and retaining walls
  • Open-ended: reinforcement threads straight through, no obstruction to grout flow
  • Manufactured to AS 4455.1, tested to AS/NZS 4456
  • 2.5 blocks per lineal metre - easy quoting

Specifications

  • Material: Concrete
  • Dimensions: 390 x 290 x 190mm
  • Weight: 20kg each
  • Coverage: 12.5 blocks per m2
  • Pallet quantity: 72 units
  • Manufactured to AS/NZS 4455.1

Delivery Direct To Site

A delivery charge of $125 (incl. GST) applies to orders under 3 tonnes, with extra freight charged outside the local metro area depending on distance and load weight.
