If your engineer has specified a core-filled, reinforced 300mm wall, this is the block for the bottom course. The removable face panel opens straight into the base of the grout cell, so the bricklayer can clean out mortar droppings and the certifier can sight the starter bars before anything is poured. That single inspection step is what stops voids forming at the very bottom of the wall, where the stress is highest. Close the openings with clean out tiles, then core-fill as normal.
Key Features
- Gives inspectors and engineers access to the base of every grouted core
- Lets you clear mortar droppings before core-filling - prevents voids and cold joints at the critical bottom of the wall
- Starter bars can be checked and tied through the opening
- Often mandatory on engineer-designed reinforced retaining and structural walls
- Litec lightweight version of a heavy shape
- Closes with a matching 20.45A clean out tile
- 290mm wide to suit 300 series reinforced walls
Specifications
- Material: Concrete

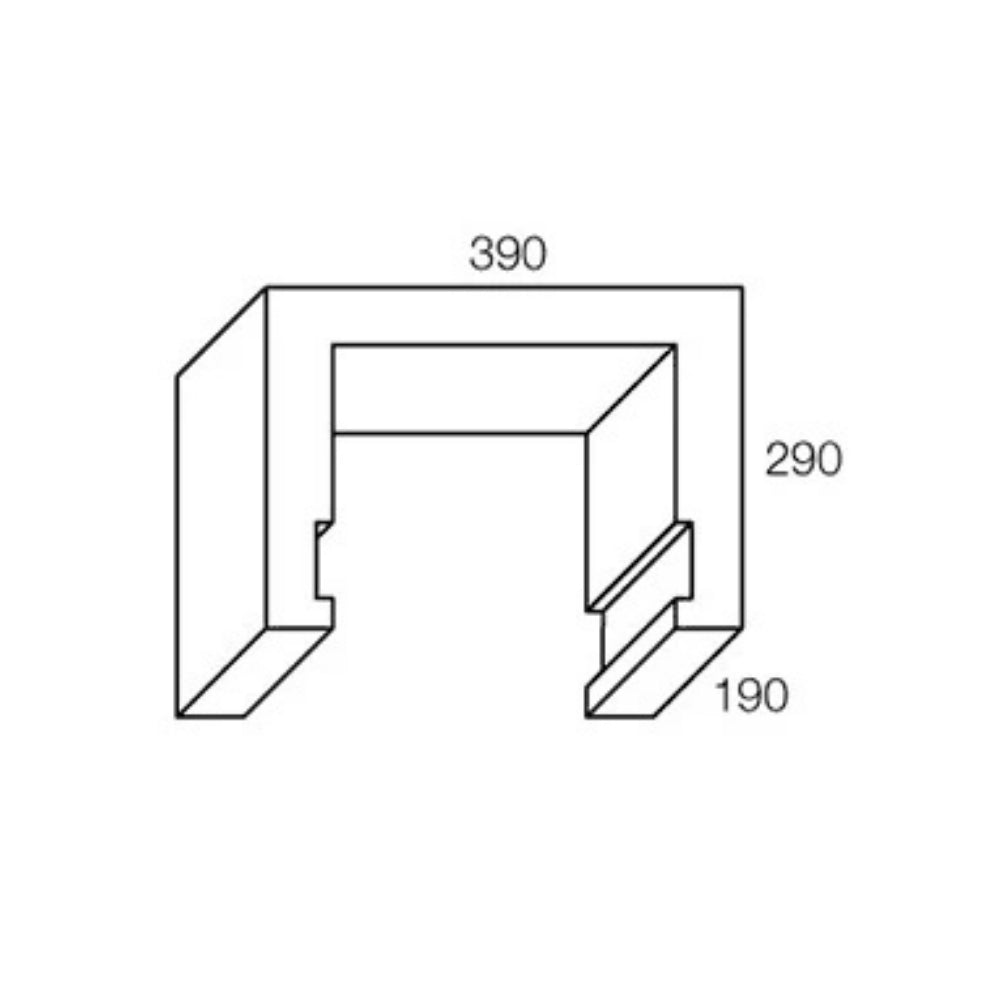

- Dimensions: 390 x 290 x 190mm
- Weight: 24.5kg each
- Coverage: 12.5 blocks per m2
- Pallet quantity: 72 units
- Manufactured to AS/NZS 4455.1
If your engineer has specified a core-filled, reinforced 300mm wall, this is the block for the bottom course. The removable face panel opens straight into the base of the grout cell, so the bricklayer can clean out mortar droppings and the certifier can sight the starter bars before anything is poured. That single inspection step is what stops voids forming at the very bottom of the wall, where the stress is highest. Close the openings with clean out tiles, then core-fill as normal.
Key Features
- Gives inspectors and engineers access to the base of every grouted core
- Lets you clear mortar droppings before core-filling - prevents voids and cold joints at the critical bottom of the wall
- Starter bars can be checked and tied through the opening
- Often mandatory on engineer-designed reinforced retaining and structural walls
- Litec lightweight version of a heavy shape
- Closes with a matching 20.45A clean out tile
- 290mm wide to suit 300 series reinforced walls
Specifications
- Material: Concrete
- Dimensions: 390 x 290 x 190mm
- Weight: 24.5kg each
- Coverage: 12.5 blocks per m2
- Pallet quantity: 72 units
- Manufactured to AS/NZS 4455.1
Delivery Direct To Site
A delivery charge of $125 (incl. GST) applies to orders under 3 tonnes, with extra freight charged outside the local metro area depending on distance and load weight.
Pallets must be collected after delivery.
