Any long, continuous block wall will crack as the concrete shrinks and as it heats and cools. Control joint blocks let you decide where that crack goes. Build them in as a full-height vertical joint every 6-8 metres (confirm the spacing with your engineer), alternating the full 20.09 with the half 20.10 each course, then rake and seal the joint. The wall still holds together sideways - it just moves cleanly at the joint instead of cracking randomly.

Key Features

  • Controls shrinkage and thermal cracking in long walls
  • Interlocking moulded sash profile transfers shear while allowing movement
  • Alternates course by course with the 20.10 half control joint
  • Heaviest and most solid of the 200 series shapes at 14.5kg
  • 72 per pallet with half-pallets (36) available
  • Needed roughly every 6-8m of continuous walling

Specifications

  • Material: Concrete

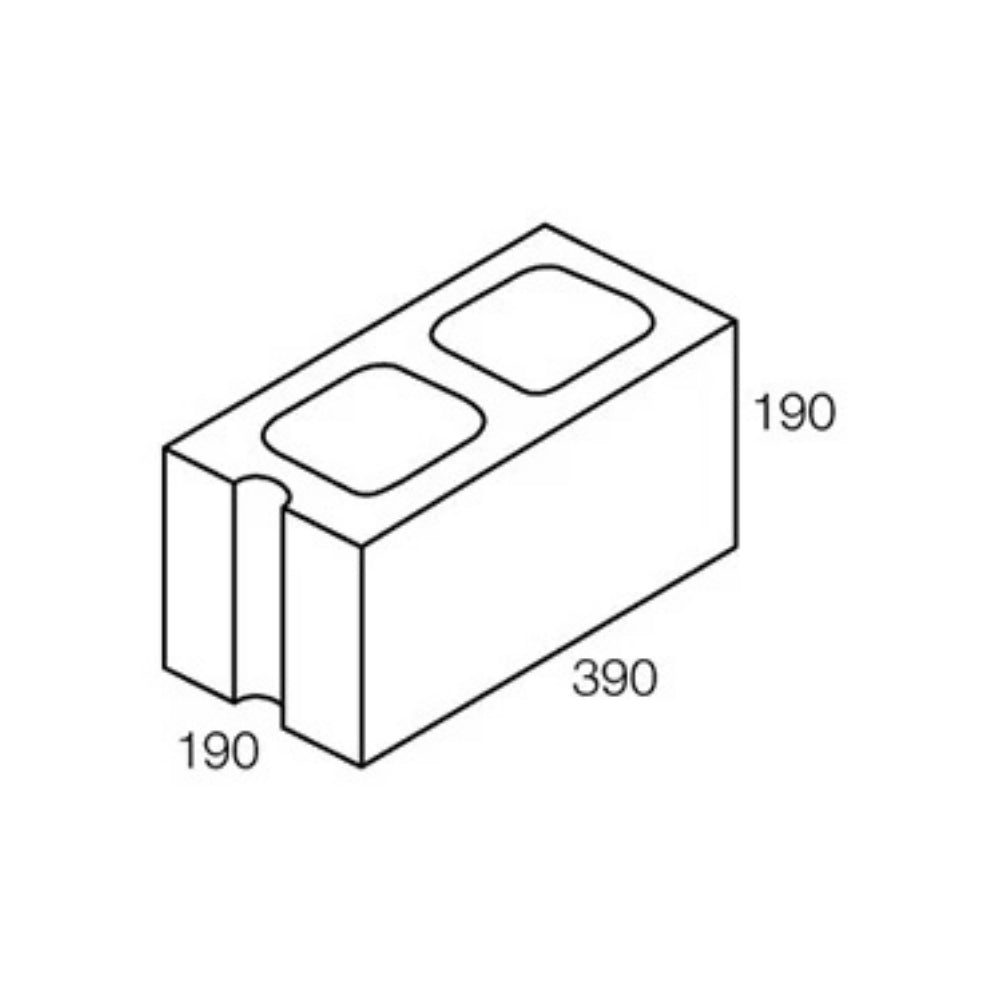

  • Dimensions: 390 x 190 x 190mm
  • Weight: 14.5kg each
  • Pallet quantity: 72 units
  • Manufactured to AS/NZS 4455.1

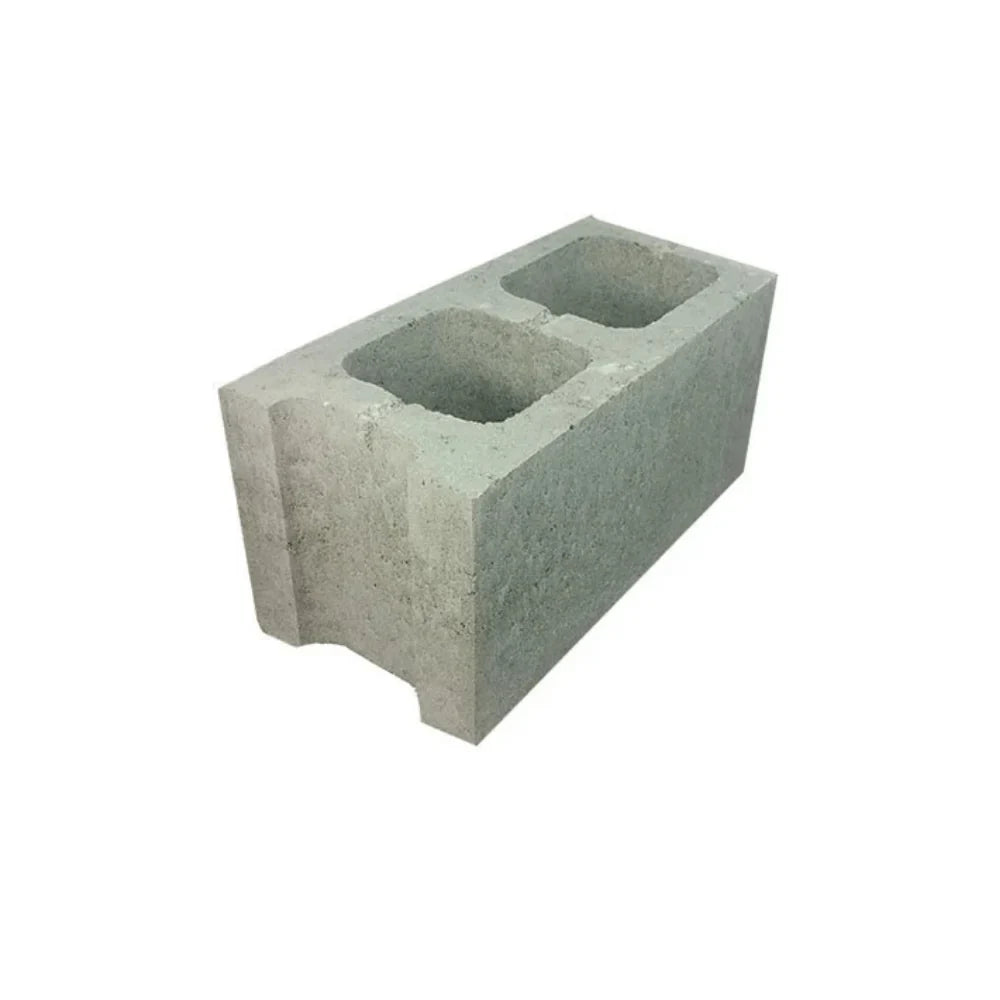

Litec 200 Series Full Control Joint Concrete Block

$6.10
GST included
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can be bought in quantity increments of .

Your Landscape Calculations

  1. Example Area 1 - 116 m²
  2. Example Area 2 - 80 m²
Remaining Turf Area: 0 m²
Tip: Add up to 10% extra to allow for cuts and waste.

Any long, continuous block wall will crack as the concrete shrinks and as it heats and cools. Control joint blocks let you decide where that crack goes. Build them in as a full-height vertical joint every 6-8 metres (confirm the spacing with your engineer), alternating the full 20.09 with the half 20.10 each course, then rake and seal the joint. The wall still holds together sideways - it just moves cleanly at the joint instead of cracking randomly.

Key Features

  • Controls shrinkage and thermal cracking in long walls
  • Interlocking moulded sash profile transfers shear while allowing movement
  • Alternates course by course with the 20.10 half control joint
  • Heaviest and most solid of the 200 series shapes at 14.5kg
  • 72 per pallet with half-pallets (36) available
  • Needed roughly every 6-8m of continuous walling

Specifications

  • Material: Concrete
  • Dimensions: 390 x 190 x 190mm
  • Weight: 14.5kg each
  • Pallet quantity: 72 units
  • Manufactured to AS/NZS 4455.1

Delivery Direct To Site

A delivery charge of $125 (incl. GST) applies to orders under 3 tonnes, with extra freight charged outside the local metro area depending on distance and load weight.

Pallets must be collected after delivery.
