The lintel block spans over door and window openings. Because its base is closed, you can prop a row of them across the opening, lay reinforcing bar in the channel and fill it with concrete - once it cures you have a proper reinforced lintel with exactly the same look as the rest of the wall. It saves fitting a steel angle or a precast lintel, and there's no join or colour change over the opening. Allow 2.5 blocks per lineal metre of span plus the required bearing each end, and check the bar size with your engineer.

Key Features

  • Solid closed base holds wet corefill over an opening - no formwork required underneath
  • Forms a reinforced concrete lintel in the same face as the wall, so nothing shows over the opening
  • Replaces steel angle lintels and precast lintels - one material, one finish, no rust risk
  • Also serves as a bond beam course where a closed-base channel is wanted
  • ~20% lighter than the dense-weight equivalent (13.50kg vs 16.20kg)
  • 120 per pallet; 2.5 blocks per lineal metre of opening
  • AS/NZS 4455.1, Exposure durability grade

Specifications

  • Material: Concrete

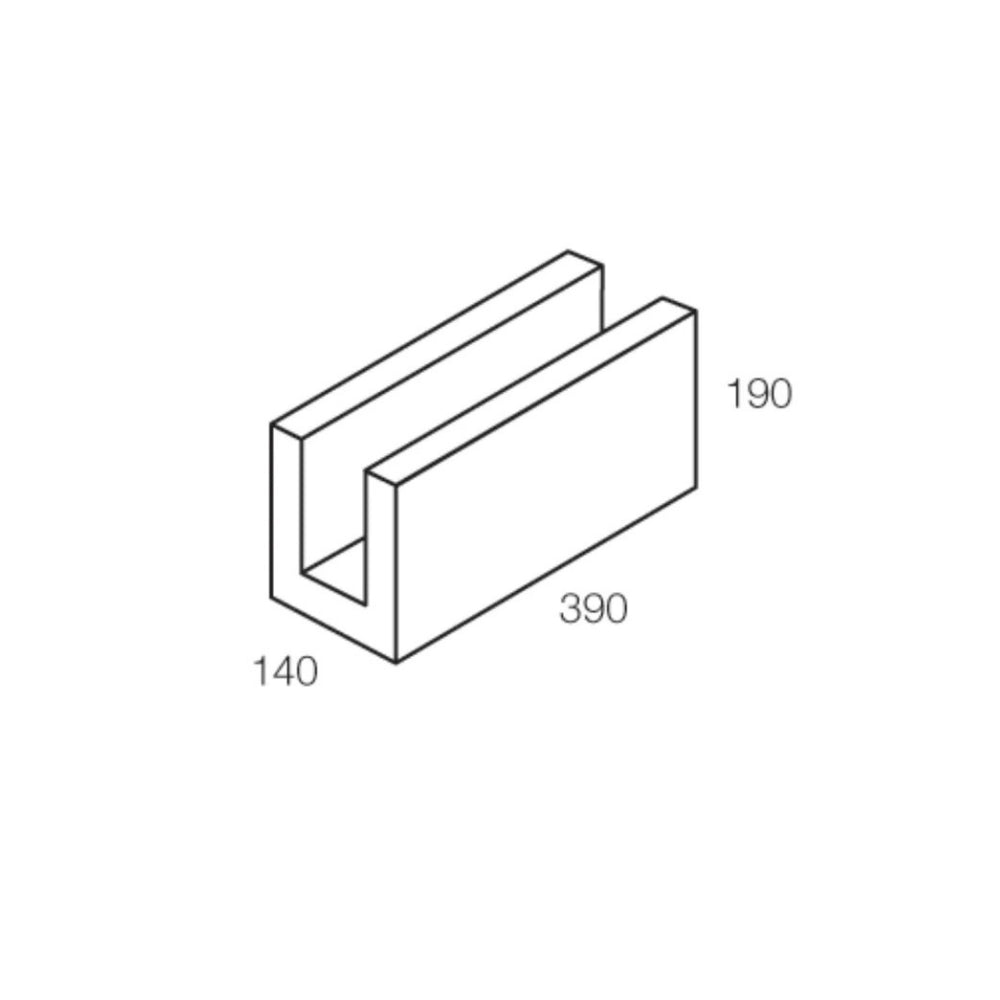

  • Dimensions: 390 x 140 x 190mm
  • Weight: 13.5kg each
  • Coverage: 12.5 blocks per m2
  • Pallet quantity: 120 units
  • Manufactured to AS/NZS 4455.1

Litec 150 Series Lintel Block

$6.65
GST included
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can be bought in quantity increments of .

Your Landscape Calculations

  1. Example Area 1 - 116 m²
  2. Example Area 2 - 80 m²
Remaining Turf Area: 0 m²
Tip: Add up to 10% extra to allow for cuts and waste.

The lintel block spans over door and window openings. Because its base is closed, you can prop a row of them across the opening, lay reinforcing bar in the channel and fill it with concrete - once it cures you have a proper reinforced lintel with exactly the same look as the rest of the wall. It saves fitting a steel angle or a precast lintel, and there's no join or colour change over the opening. Allow 2.5 blocks per lineal metre of span plus the required bearing each end, and check the bar size with your engineer.

Key Features

  • Solid closed base holds wet corefill over an opening - no formwork required underneath
  • Forms a reinforced concrete lintel in the same face as the wall, so nothing shows over the opening
  • Replaces steel angle lintels and precast lintels - one material, one finish, no rust risk
  • Also serves as a bond beam course where a closed-base channel is wanted
  • ~20% lighter than the dense-weight equivalent (13.50kg vs 16.20kg)
  • 120 per pallet; 2.5 blocks per lineal metre of opening
  • AS/NZS 4455.1, Exposure durability grade

Specifications

  • Material: Concrete
  • Dimensions: 390 x 140 x 190mm
  • Weight: 13.5kg each
  • Coverage: 12.5 blocks per m2
  • Pallet quantity: 120 units
  • Manufactured to AS/NZS 4455.1

Delivery Direct To Site

A delivery charge of $125 (incl. GST) applies to orders under 3 tonnes, with extra freight charged outside the local metro area depending on distance and load weight.

Pallets must be collected after delivery.
