A bond beam is a continuous reinforced concrete beam cast inside the wall itself, and this is the block that makes one. The internal webs are moulded thin so the bricklayer knocks them out with a hammer on site, turning the course into a long open trough that takes horizontal steel and concrete fill. Your engineer will nominate where bond beams go - commonly at the top of a retaining or boundary wall, at floor and roof level, and at intervals up a tall wall. Until the webs are knocked out it lays just like a standard block.

Key Features

  • Knock-out webs - form a continuous reinforced bond beam anywhere in the wall, on demand
  • Handles and stacks like a standard block until the webs are removed
  • The standard way to satisfy an engineer's horizontal reinforcement requirement in blockwork
  • Essential at the top course of reinforced retaining and boundary walls
  • Lightweight at 11.10kg vs 13.0kg dense-weight
  • 144 per pallet, 12.5/m2 - same coursing as the 15.01
  • AS/NZS 4455.1, Exposure durability grade

Specifications

  • Material: Concrete

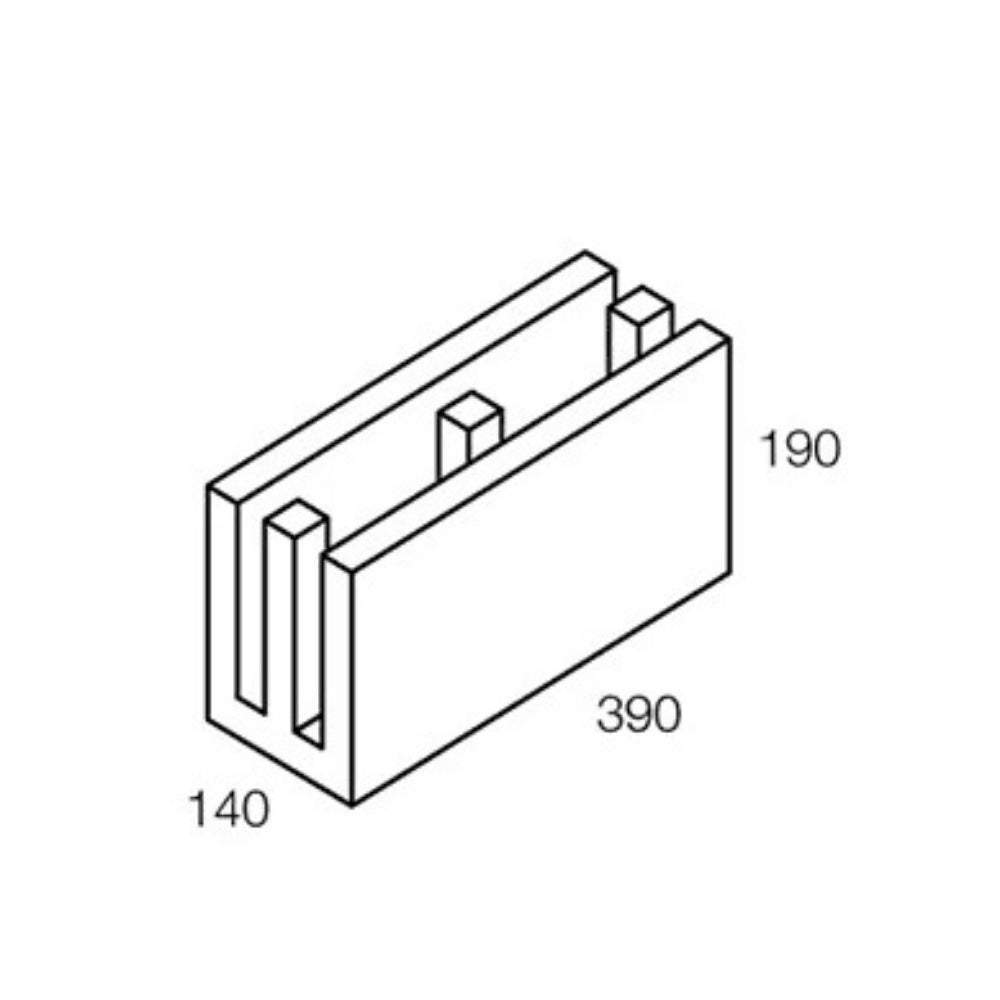

  • Dimensions: 390 x 140 x 190mm
  • Weight: 11.1kg each
  • Coverage: 12.5 blocks per m2
  • Pallet quantity: 144 units
  • Manufactured to AS/NZS 4455.1

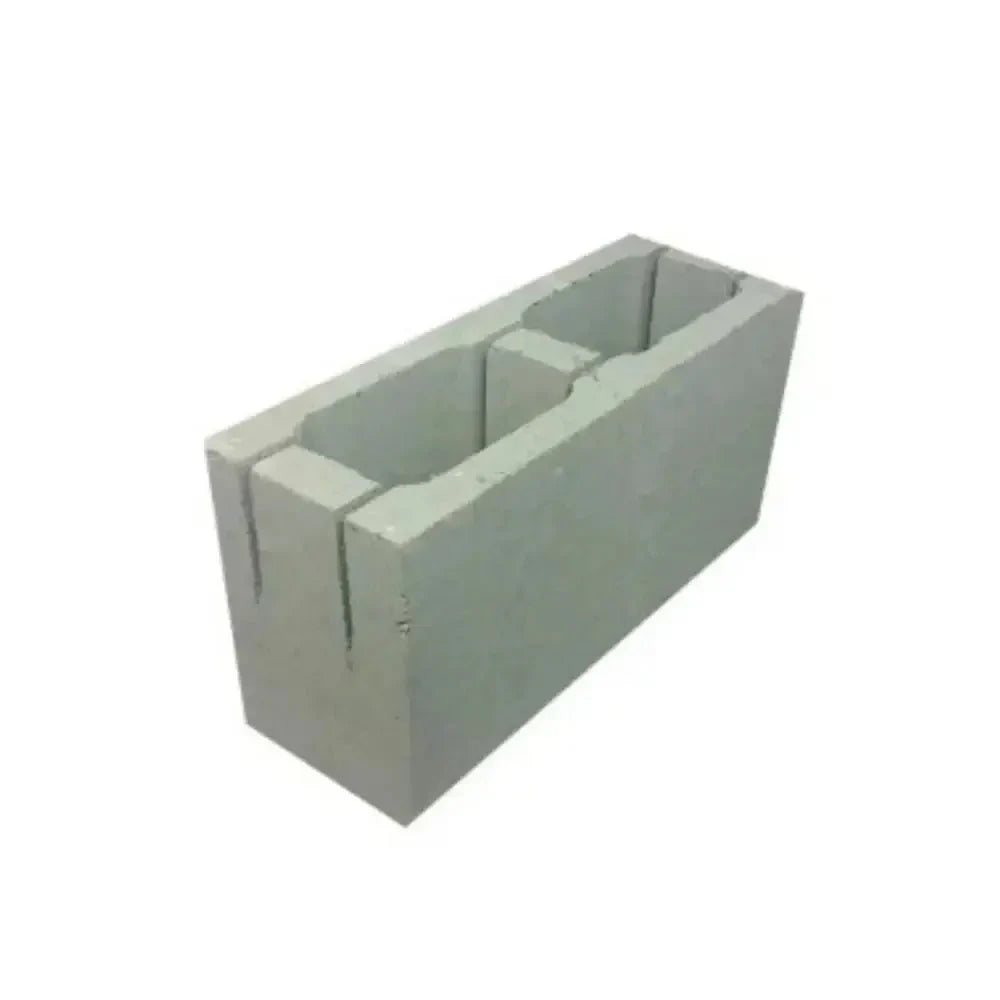

Litec 150 Series Knock Out Bond Beam Block

$4.15
GST included
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can be bought in quantity increments of .

Your Landscape Calculations

  1. Example Area 1 - 116 m²
  2. Example Area 2 - 80 m²
Remaining Turf Area: 0 m²
Tip: Add up to 10% extra to allow for cuts and waste.

A bond beam is a continuous reinforced concrete beam cast inside the wall itself, and this is the block that makes one. The internal webs are moulded thin so the bricklayer knocks them out with a hammer on site, turning the course into a long open trough that takes horizontal steel and concrete fill. Your engineer will nominate where bond beams go - commonly at the top of a retaining or boundary wall, at floor and roof level, and at intervals up a tall wall. Until the webs are knocked out it lays just like a standard block.

Key Features

  • Knock-out webs - form a continuous reinforced bond beam anywhere in the wall, on demand
  • Handles and stacks like a standard block until the webs are removed
  • The standard way to satisfy an engineer's horizontal reinforcement requirement in blockwork
  • Essential at the top course of reinforced retaining and boundary walls
  • Lightweight at 11.10kg vs 13.0kg dense-weight
  • 144 per pallet, 12.5/m2 - same coursing as the 15.01
  • AS/NZS 4455.1, Exposure durability grade

Specifications

  • Material: Concrete
  • Dimensions: 390 x 140 x 190mm
  • Weight: 11.1kg each
  • Coverage: 12.5 blocks per m2
  • Pallet quantity: 144 units
  • Manufactured to AS/NZS 4455.1

Delivery Direct To Site

A delivery charge of $125 (incl. GST) applies to orders under 3 tonnes, with extra freight charged outside the local metro area depending on distance and load weight.
