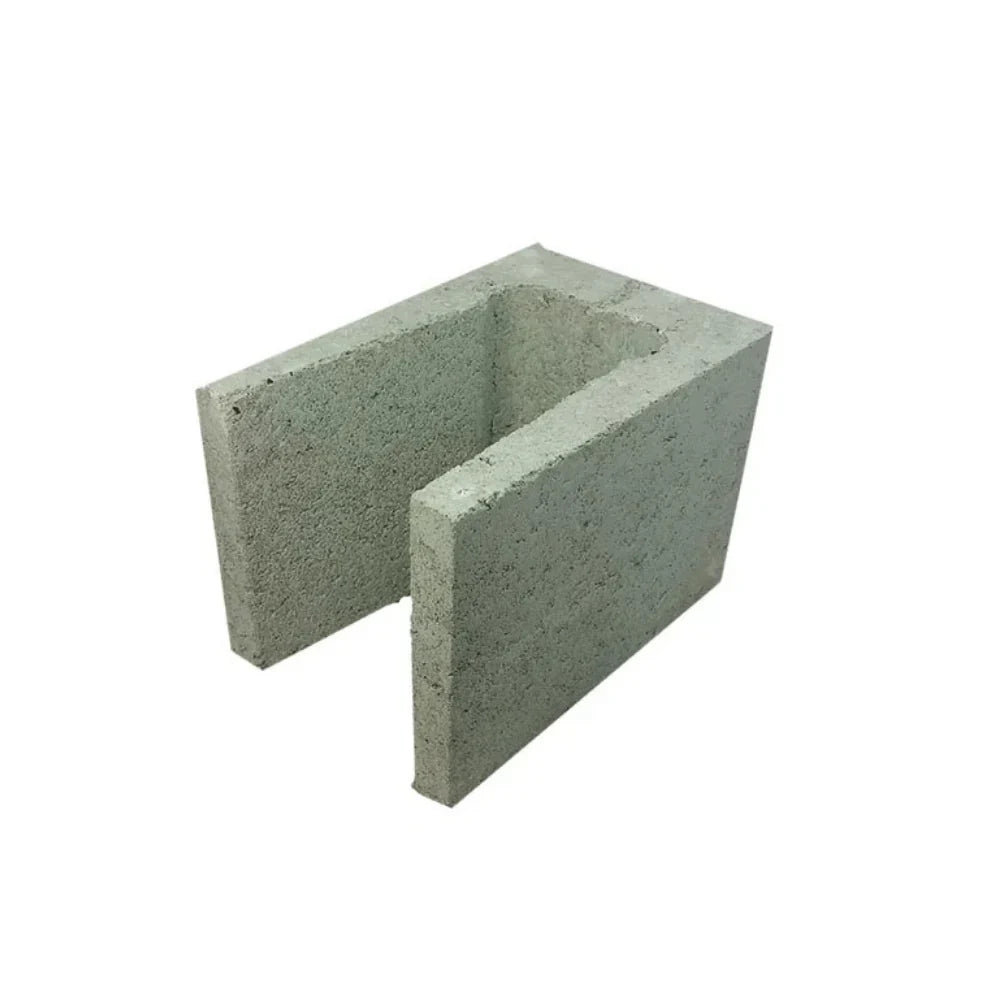

This is the middle lintel of the three. Use it over openings that are too wide for the shallow half lintel but don't need the full depth of a deep lintel - a standard single door or a typical window is the usual case. Lay them end to end on temporary propping across the opening, add the reinforcing steel your engineer specifies, and fill with concrete.
Key Features
- 290mm beam depth - the mid-range lintel between the 190 half and 390 deep
- Solid-based trough holds grout without soffit formwork
- Takes N12/Y12 reinforcing bar
- Face matches surrounding blockwork
- Saves over-specifying a full deep lintel on medium spans
- Part of the matched 190 / 290 / 390 lintel family
Specifications
- Material: Concrete

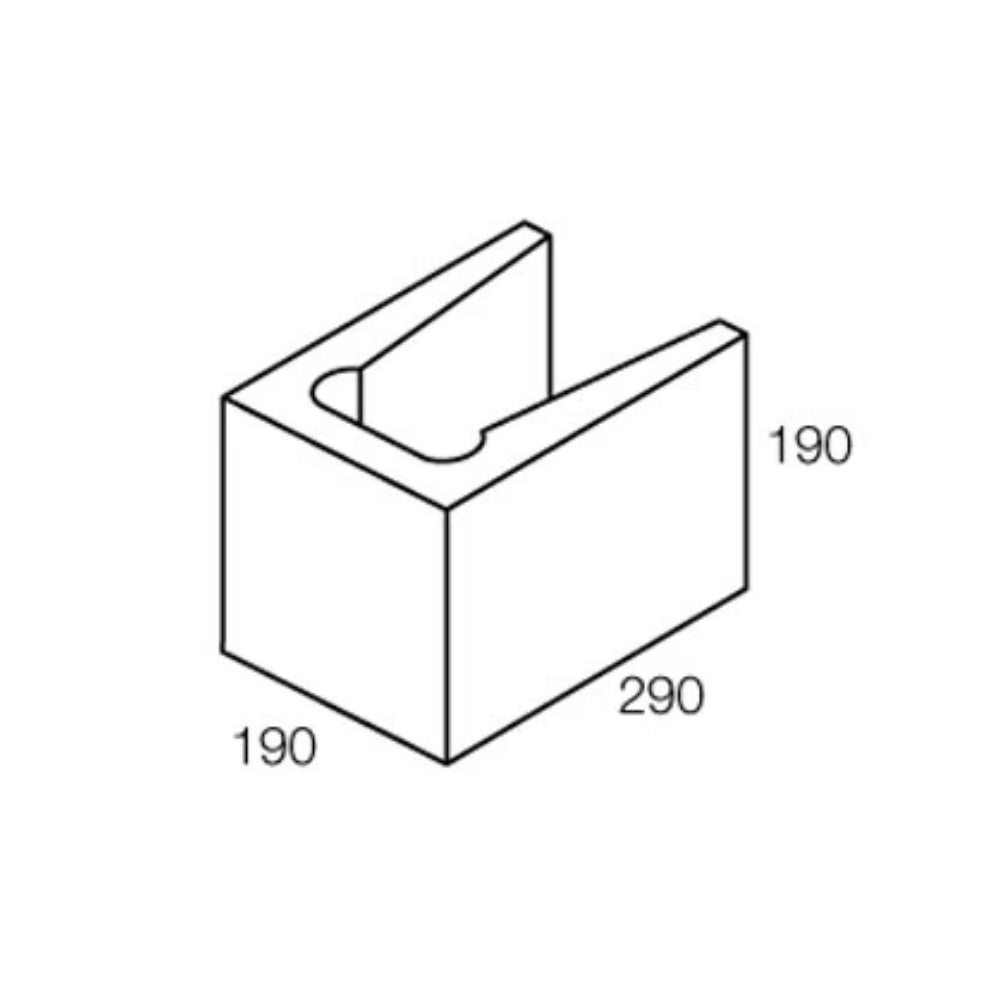

- Dimensions: 190 x 190 x 290mm
- Weight: 12kg each
- Coverage: 16.67 blocks per m2
- Pallet quantity: 120 units
- Manufactured to AS/NZS 4455.1
This is the middle lintel of the three. Use it over openings that are too wide for the shallow half lintel but don't need the full depth of a deep lintel - a standard single door or a typical window is the usual case. Lay them end to end on temporary propping across the opening, add the reinforcing steel your engineer specifies, and fill with concrete.
Key Features
- 290mm beam depth - the mid-range lintel between the 190 half and 390 deep
- Solid-based trough holds grout without soffit formwork
- Takes N12/Y12 reinforcing bar
- Face matches surrounding blockwork
- Saves over-specifying a full deep lintel on medium spans
- Part of the matched 190 / 290 / 390 lintel family
Specifications
- Material: Concrete
- Dimensions: 190 x 190 x 290mm
- Weight: 12kg each
- Coverage: 16.67 blocks per m2
- Pallet quantity: 120 units
- Manufactured to AS/NZS 4455.1
