Every door and window in a blockwall needs something to carry the load above it, and this is the block that does it. It's a U-shaped trough: lay a run across the opening, drop your reinforcing bar into the channel, fill with concrete and you've cast a lintel that's the same size and colour as the rest of the wall. Run the same block continuously along a course and you've formed a bond beam instead. Reinforcement size and spans must come from your engineer.

Key Features

  • Forms structural lintels over doors and windows in the same coursing as the wall
  • Doubles as a bond beam block for continuous reinforced ties
  • Solid base holds the wet grout - no formwork or props needed under short spans
  • Open ends let reinforcement run continuously through
  • Heavier than the Litec equivalent on Adbri's published weights, which generally means better acoustic performance
  • First-quality units only, no seconds
  • 2.5 per lineal metre for fast quoting

Specifications

  • Material: Concrete

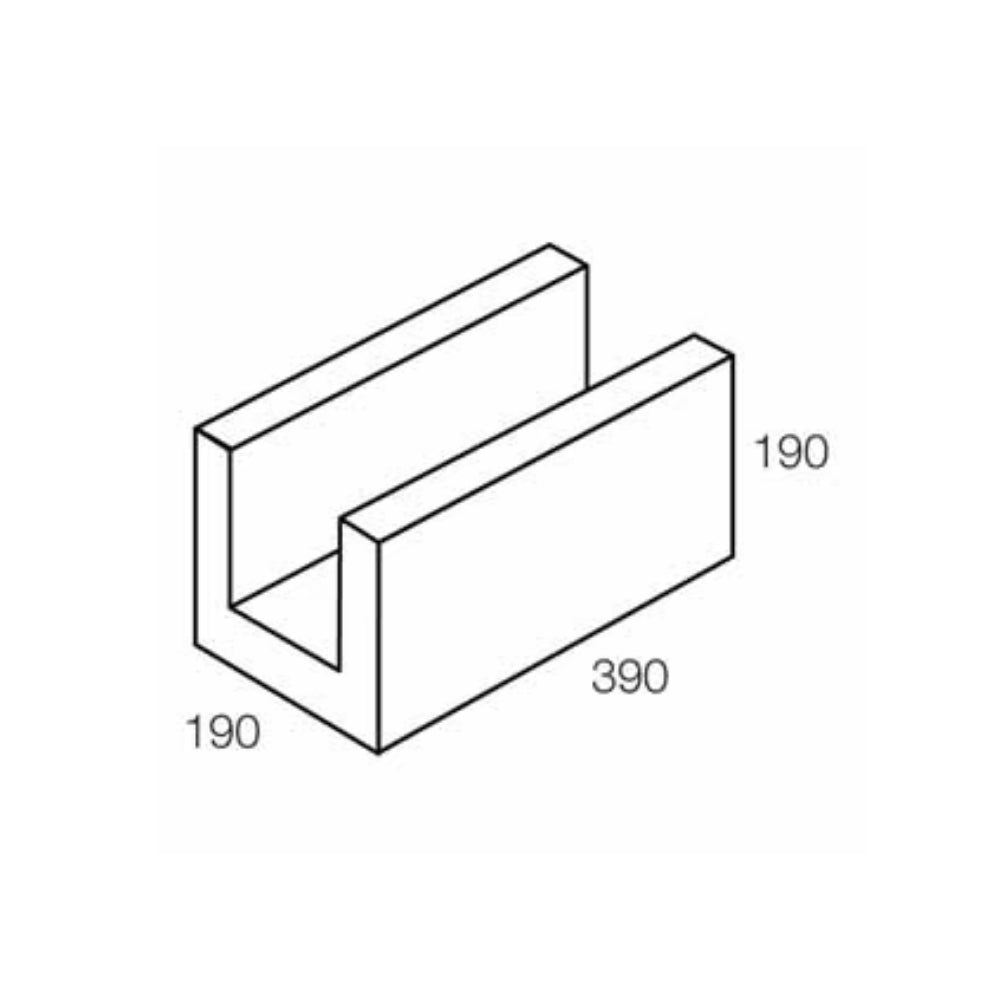

  • Dimensions: 390 x 190 x 190mm
  • Weight: 15.7kg each
  • Coverage: 12.5 blocks per m2
  • Pallet quantity: 72 units
  • Manufactured to AS/NZS 4455.1

200 Series Lintel Concrete Block

$13.30
GST included
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can be bought in quantity increments of .

Your Landscape Calculations

  1. Example Area 1 - 116 m²
  2. Example Area 2 - 80 m²
Remaining Turf Area: 0 m²
Tip: Add up to 10% extra to allow for cuts and waste.

Every door and window in a blockwall needs something to carry the load above it, and this is the block that does it. It's a U-shaped trough: lay a run across the opening, drop your reinforcing bar into the channel, fill with concrete and you've cast a lintel that's the same size and colour as the rest of the wall. Run the same block continuously along a course and you've formed a bond beam instead. Reinforcement size and spans must come from your engineer.

Key Features

  • Forms structural lintels over doors and windows in the same coursing as the wall
  • Doubles as a bond beam block for continuous reinforced ties
  • Solid base holds the wet grout - no formwork or props needed under short spans
  • Open ends let reinforcement run continuously through
  • Heavier than the Litec equivalent on Adbri's published weights, which generally means better acoustic performance
  • First-quality units only, no seconds
  • 2.5 per lineal metre for fast quoting

Specifications

  • Material: Concrete
  • Dimensions: 390 x 190 x 190mm
  • Weight: 15.7kg each
  • Coverage: 12.5 blocks per m2
  • Pallet quantity: 72 units
  • Manufactured to AS/NZS 4455.1

Delivery Direct To Site

A delivery charge of $125 (incl. GST) applies to orders under 3 tonnes, with extra freight charged outside the local metro area depending on distance and load weight.

Pallets must be collected after delivery.
