Lintel blocks bridge the gap over a door or window. Prop a temporary form across the opening, lay the lintel blocks end to end on it, drop in the reinforcing bar your engineer specifies and fill the trough with concrete. Once it cures you have a reinforced concrete beam that looks like the rest of the wall. The half lintel is the shallow one - use it for short spans and light loads, and step up to the 20.25 or 20.18 for wider openings.

Key Features

  • Solid-based U-trough holds wet grout without formwork to the soffit
  • 190mm beam depth for short spans and light loads
  • Takes standard N12/Y12 reinforcing bar
  • 180 per pallet
  • Face matches the surrounding blockwork so the lintel disappears into the wall
  • Part of a matched 190 / 290 / 390 deep lintel family

Specifications

  • Material: Concrete

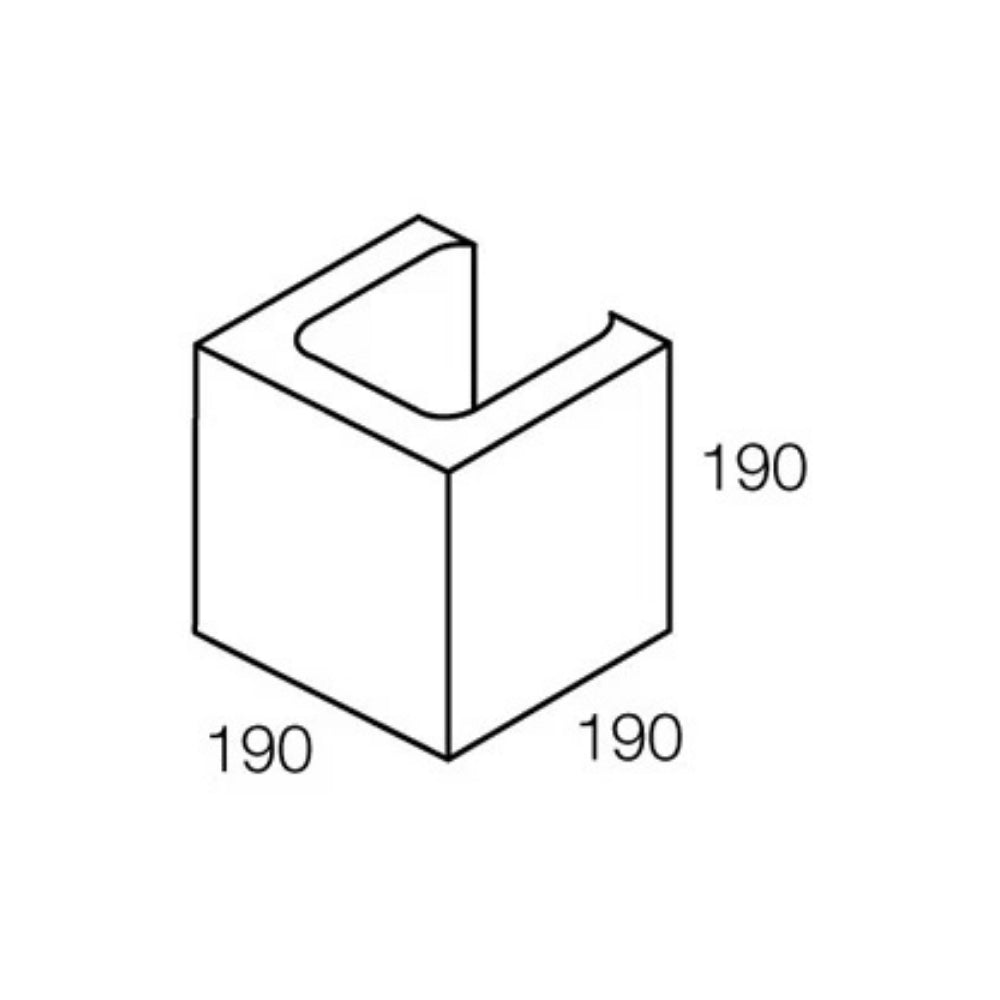

  • Dimensions: 190 x 190 x 190mm
  • Weight: 8.88kg each
  • Coverage: 25.0 blocks per m2
  • Pallet quantity: 180 units
  • Manufactured to AS/NZS 4455.1

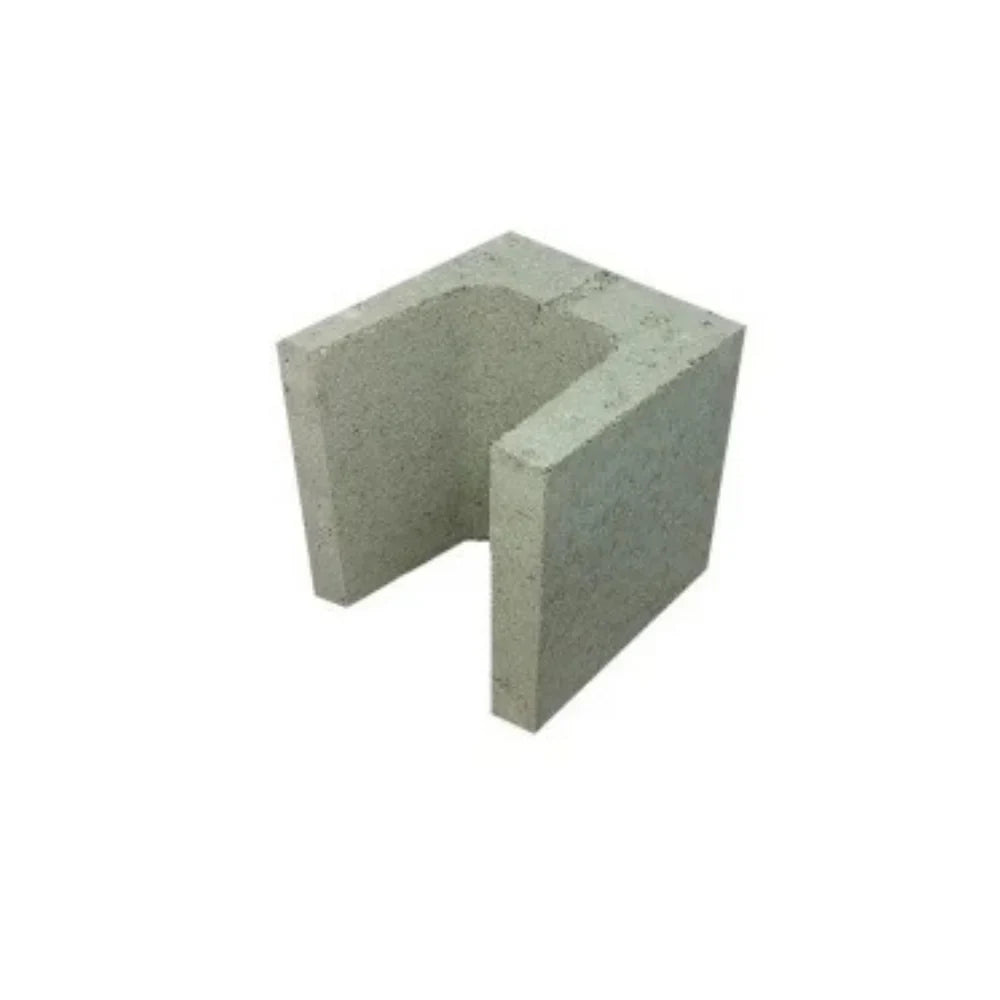

200 Series Half Lintel Concrete Block

$6.40
GST included
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can be bought in quantity increments of .

Your Landscape Calculations

  1. Example Area 1 - 116 m²
  2. Example Area 2 - 80 m²
Remaining Turf Area: 0 m²
Tip: Add up to 10% extra to allow for cuts and waste.

Lintel blocks bridge the gap over a door or window. Prop a temporary form across the opening, lay the lintel blocks end to end on it, drop in the reinforcing bar your engineer specifies and fill the trough with concrete. Once it cures you have a reinforced concrete beam that looks like the rest of the wall. The half lintel is the shallow one - use it for short spans and light loads, and step up to the 20.25 or 20.18 for wider openings.

Key Features

  • Solid-based U-trough holds wet grout without formwork to the soffit
  • 190mm beam depth for short spans and light loads
  • Takes standard N12/Y12 reinforcing bar
  • 180 per pallet
  • Face matches the surrounding blockwork so the lintel disappears into the wall
  • Part of a matched 190 / 290 / 390 deep lintel family

Specifications

  • Material: Concrete
  • Dimensions: 190 x 190 x 190mm
  • Weight: 8.88kg each
  • Coverage: 25.0 blocks per m2
  • Pallet quantity: 180 units
  • Manufactured to AS/NZS 4455.1

Delivery Direct To Site

A delivery charge of $125 (incl. GST) applies to orders under 3 tonnes, with extra freight charged outside the local metro area depending on distance and load weight.

Pallets must be collected after delivery.
