This is the heavy-duty lintel for wide or heavily loaded openings - think a double garage door or a long window run. It gives you a full 400mm of beam depth in one course instead of stacking two shallow lintels. Prop the opening, lay the blocks end to end, place the reinforcing steel your engineer has specified and fill with concrete. Always have the steel and span checked by an engineer on openings this size.

Key Features

  • 390mm deep in a single unit - full beam depth in one lift
  • Roughly double the span capability of the 190-deep half lintel
  • Solid-based trough needs no soffit formwork
  • Takes multiple layers of reinforcing bar
  • Face matches surrounding blockwork
  • Part of the matched 190 / 290 / 390 lintel family

Specifications

  • Material: Concrete

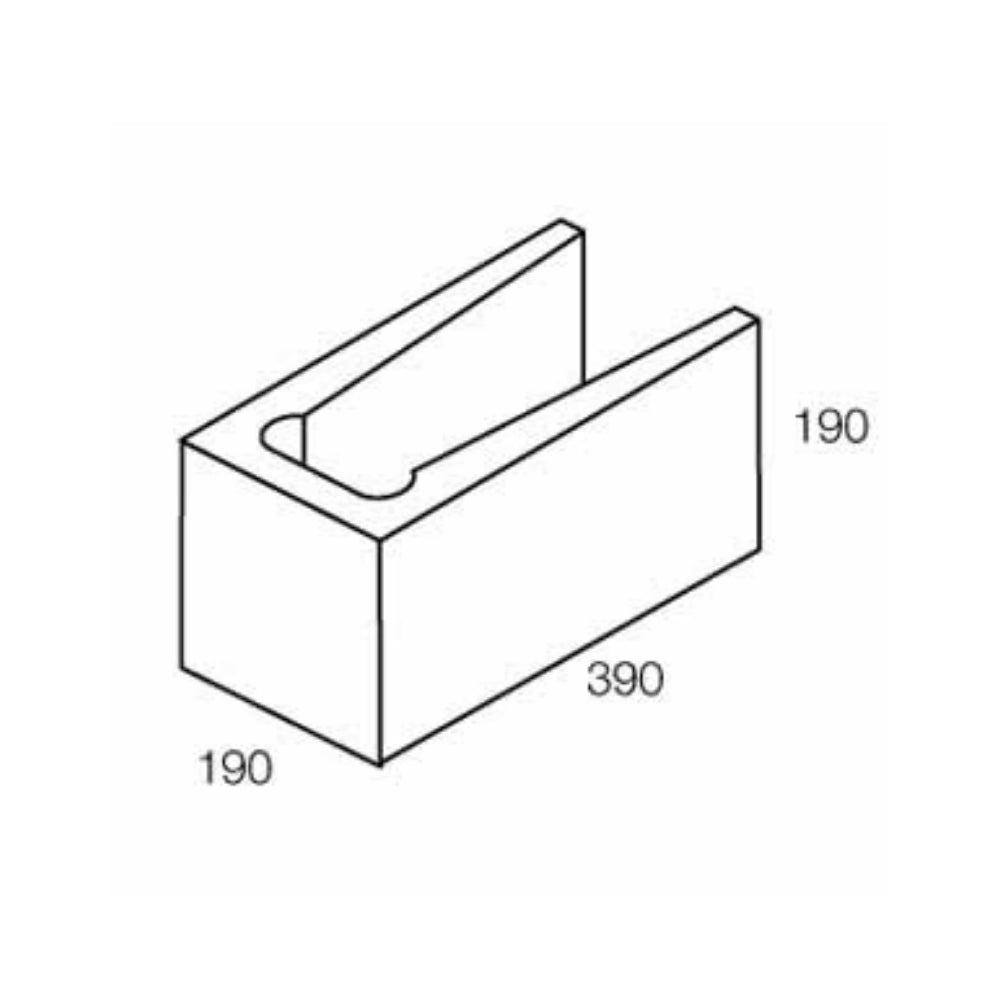

  • Dimensions: 190 x 190 x 390mm
  • Weight: 14.61kg each
  • Coverage: 12.5 blocks per m2
  • Pallet quantity: 90 units
  • Manufactured to AS/NZS 4455.1

200 Series Deep Lintel Concrete Block

$10.75
GST included
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can be bought in quantity increments of .

Your Landscape Calculations

  1. Example Area 1 - 116 m²
  2. Example Area 2 - 80 m²
Remaining Turf Area: 0 m²
Tip: Add up to 10% extra to allow for cuts and waste.

This is the heavy-duty lintel for wide or heavily loaded openings - think a double garage door or a long window run. It gives you a full 400mm of beam depth in one course instead of stacking two shallow lintels. Prop the opening, lay the blocks end to end, place the reinforcing steel your engineer has specified and fill with concrete. Always have the steel and span checked by an engineer on openings this size.

Key Features

  • 390mm deep in a single unit - full beam depth in one lift
  • Roughly double the span capability of the 190-deep half lintel
  • Solid-based trough needs no soffit formwork
  • Takes multiple layers of reinforcing bar
  • Face matches surrounding blockwork
  • Part of the matched 190 / 290 / 390 lintel family

Specifications

  • Material: Concrete
  • Dimensions: 190 x 190 x 390mm
  • Weight: 14.61kg each
  • Coverage: 12.5 blocks per m2
  • Pallet quantity: 90 units
  • Manufactured to AS/NZS 4455.1

Delivery Direct To Site

A delivery charge of $125 (incl. GST) applies to orders under 3 tonnes, with extra freight charged outside the local metro area depending on distance and load weight.

Pallets must be collected after delivery.
