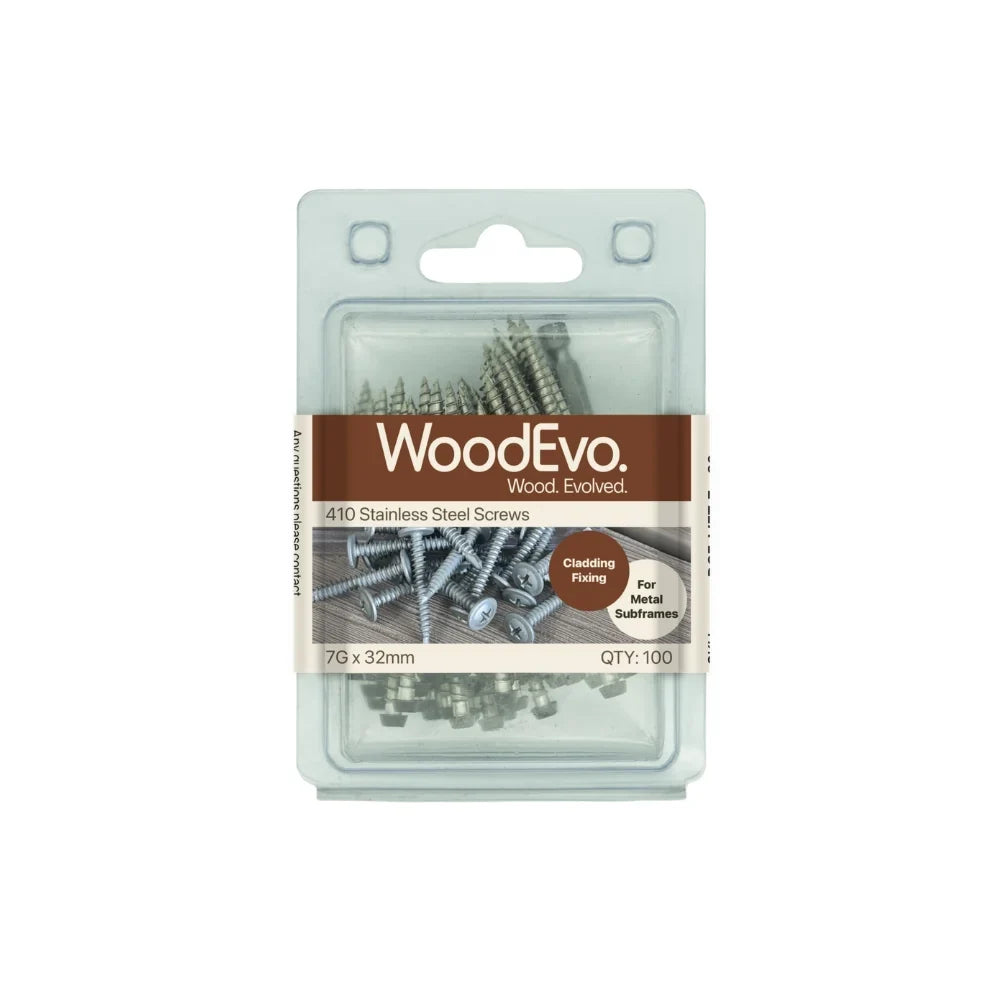

WoodEvo cladding fixing screws are 7g x 32mm stainless screws supplied 100 per box for fixing castellated cladding boards to battens. Use the 304 stainless version into timber battens and the 410 stainless version into steel top-hat battens. Pre-drill 4mm and place each screw 15-25mm from the board edge, one per rail per panel. One box covers a typical single-elevation cladding run.
Minimum order
Woodhouse products carry a minimum order value of $1,200 excluding GST across the order. This range is supplied for complete projects rather than part supply.
Key Features
- 7g x 32mm cladding fixing screw, 100 per box
- Timber subframe version is 304 stainless; metal subframe version is 410 stainless
- Correct grade for external cladding - resists corrosion at the fixing point
- One screw per rail per panel, 15-25mm from the board edge, 4mm pre-drill
- Colour-matched heads keep the fixing line discreet on the castellated face
Specifications
- Weight: 0.5kg per length
