WoodEvo aluminium butt joint trims let a castellated cladding wall be joined horizontally where the elevation is taller than one board length. The female channel is fixed first and the male section closes over it, shedding water clear of the joint. Used on tall elevations, two-storey facades and feature walls where the run exceeds 4.2m. Note WoodEvo's instruction that castellated cladding is never to be butt jointed board-to-board - this trim set is the sanctioned way to make the joint.
Minimum order
Woodhouse products carry a minimum order value of $1,200 excluding GST across the order. This range is supplied for complete projects rather than part supply.
Key Features

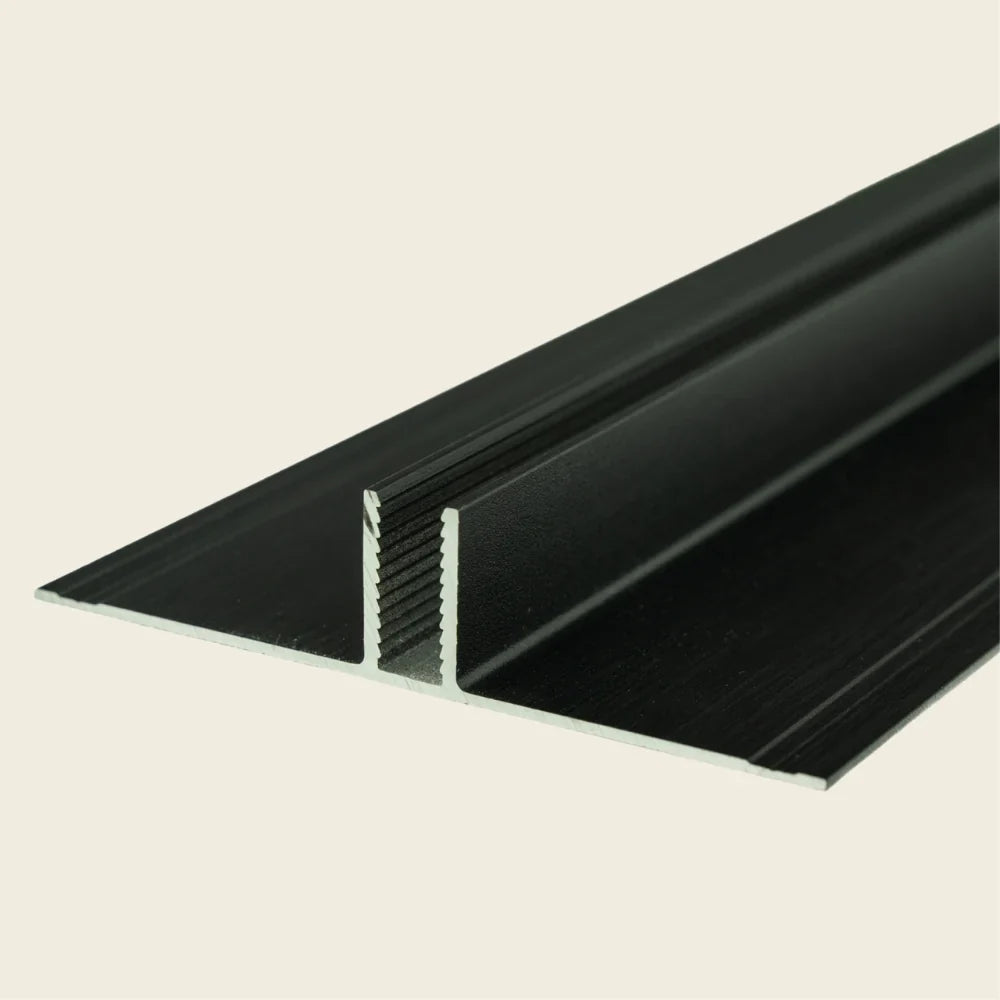

- Aluminium butt joint set - external male 50 x 21.8mm and internal female 100 x 21.8mm
- Allows a clean horizontal joint where cladding runs exceed a single board length
- Aluminium rather than composite - holds a sharper line and a slimmer sight edge
- 4.2m lengths, colour-matched to the cladding range
- Male 1.46kg and female 2.40kg per length - lightest trims in the system
Specifications
- Lengths available: 4.2m
- Colours available: Beach, Black, Dark Grey, Spotted Gum
- Weight: 1.455kg to 2.395kg per length
