The 400 series single core is a pier block, and it's the easiest way to build a square masonry column. Because the block is 390mm square, a single unit forms an entire course of a 400mm pier - you're not bonding two blocks per course or cutting corners to make the layup work, you just stack them, drop in the steel and core-fill. Five blocks gets you a metre of height. It's the standard choice for gate piers, fence posts and verandah columns, and it also does duty at the base of very tall reinforced retaining walls. At 22.65kg each, plan for two-person handling.

Key Features

  • One block = one full course of a 400mm square pier - no bonding, no corner blocks, no cutting
  • 390 x 390 square face - a genuine 400 series unit, the widest in the range
  • Single large central core takes a full reinforcement cage
  • Perfect course alignment every time - no bond to get wrong
  • Ideal for gate piers, fence posts, verandah and carport columns
  • Also used for the bottom courses of very tall core-filled retaining walls
  • Heavier than the Litec equivalent on Adbri's published weights - maximum mass and stability
  • 5 blocks per metre of pier height - trivially easy to quote

Specifications

  • Material: Concrete

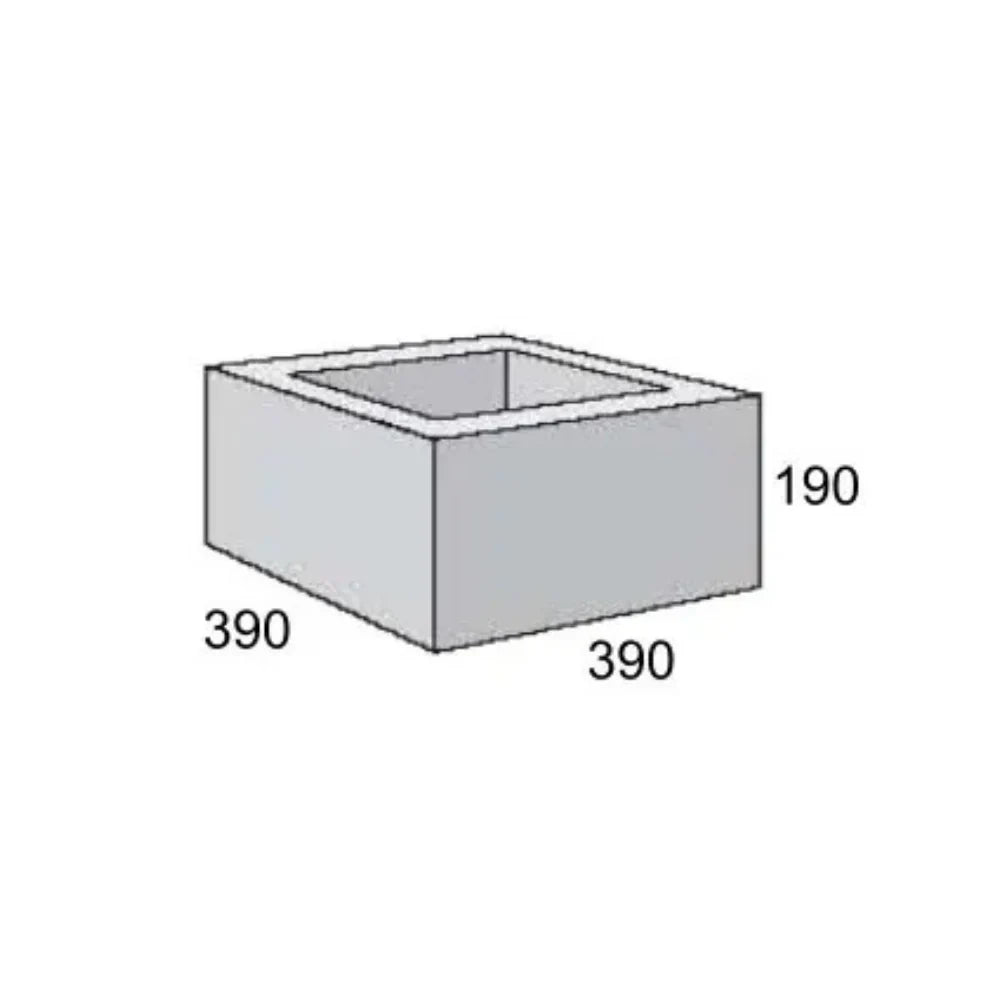

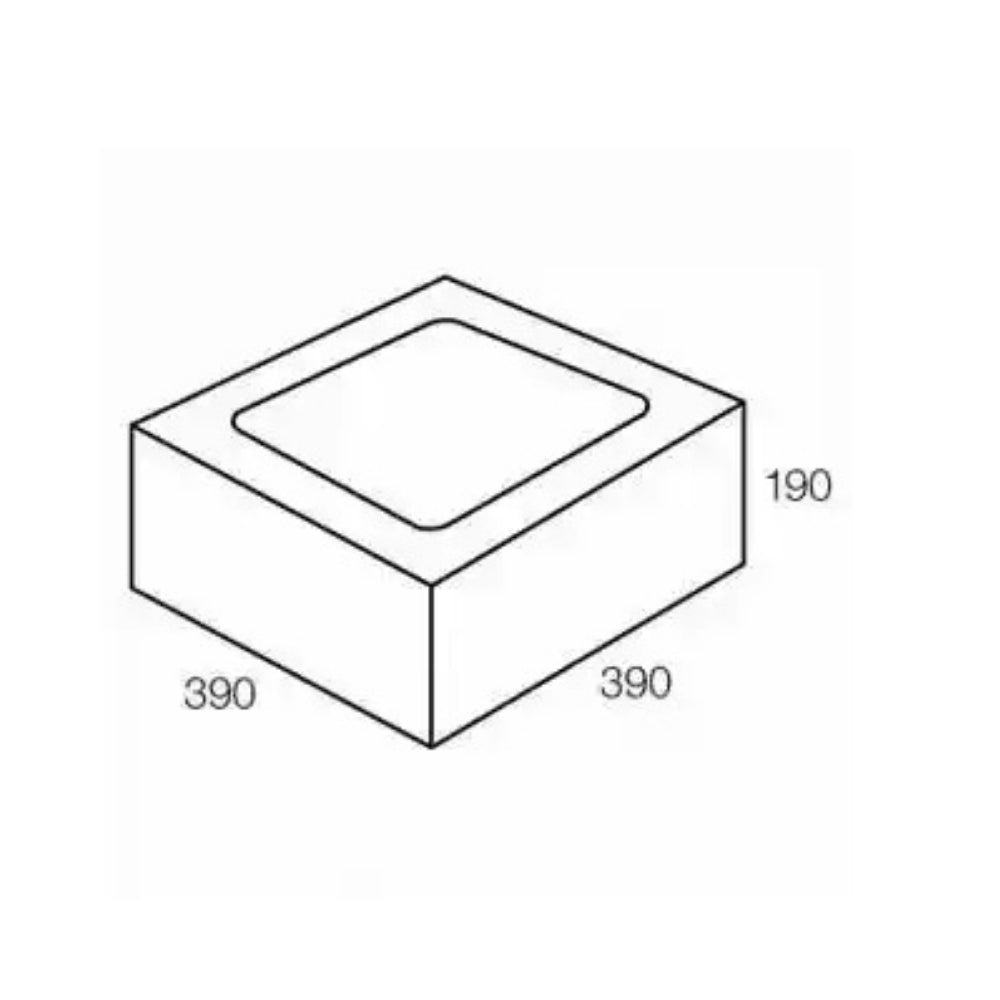

  • Dimensions: 390 x 390 x 190mm
  • Weight: 22.65kg each
  • Coverage: 12.5 blocks per m2
  • Pallet quantity: 45 units
  • Manufactured to AS/NZS 4455.1
Special Order Only

400 Series Single Core Pier Block

$18.45
GST included
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can be bought in quantity increments of .

Your Landscape Calculations

  1. Example Area 1 - 116 m²
  2. Example Area 2 - 80 m²
Remaining Turf Area: 0 m²
Tip: Add up to 10% extra to allow for cuts and waste.

The 400 series single core is a pier block, and it's the easiest way to build a square masonry column. Because the block is 390mm square, a single unit forms an entire course of a 400mm pier - you're not bonding two blocks per course or cutting corners to make the layup work, you just stack them, drop in the steel and core-fill. Five blocks gets you a metre of height. It's the standard choice for gate piers, fence posts and verandah columns, and it also does duty at the base of very tall reinforced retaining walls. At 22.65kg each, plan for two-person handling.

Key Features

  • One block = one full course of a 400mm square pier - no bonding, no corner blocks, no cutting
  • 390 x 390 square face - a genuine 400 series unit, the widest in the range
  • Single large central core takes a full reinforcement cage
  • Perfect course alignment every time - no bond to get wrong
  • Ideal for gate piers, fence posts, verandah and carport columns
  • Also used for the bottom courses of very tall core-filled retaining walls
  • Heavier than the Litec equivalent on Adbri's published weights - maximum mass and stability
  • 5 blocks per metre of pier height - trivially easy to quote

Specifications

  • Material: Concrete
  • Dimensions: 390 x 390 x 190mm
  • Weight: 22.65kg each
  • Coverage: 12.5 blocks per m2
  • Pallet quantity: 45 units
  • Manufactured to AS/NZS 4455.1
